Product Description
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Oval countersunk head screws are also known as raised countersunk head screws.
- Type 316 stainless steel is considered "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #8
- Diameter (Dimension): 0.1562"
- Thread Pitch: 32
- Length (Nominal): 1"
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Machine Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®

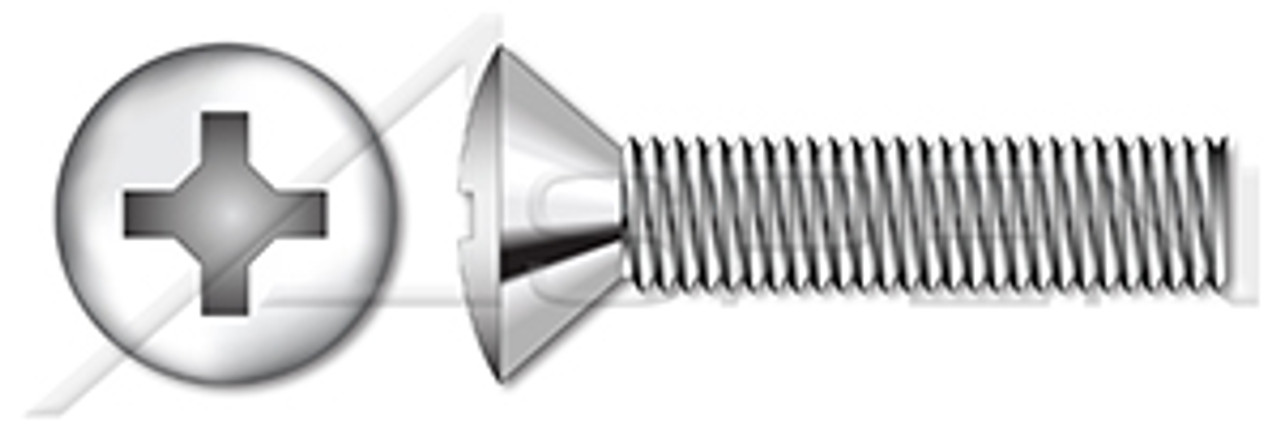

- Head Style: Oval Countersunk Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: AISI 316 Stainless Steel
- Coating: Uncoated
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Length 1"
Head Style Oval Countersunk Head
Category Machine Screws
Coating Process Uncoated
System of Measurement US Units
Drive Style Cruciform Recess Drive
Material AISI 316 Stainless Steel
Diameter/Pitch #8-32
