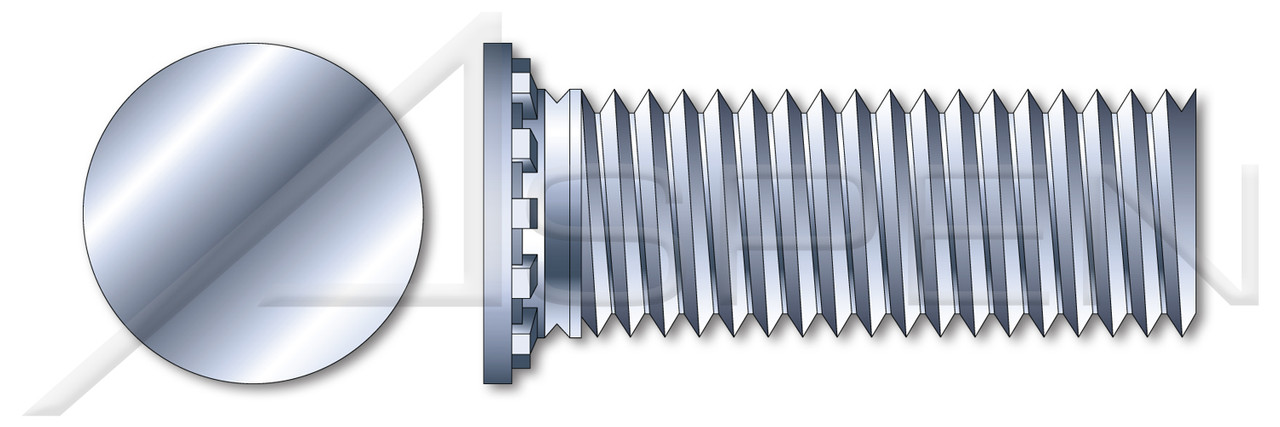

Product Description
- Self clinching studs are designed to become permanent fixtures of the parts they are installed onto.
- Forcing the clinching ring into softer material causes it to deform and lock into the shank.
- Pressed into a drilled or punched hole with an arbor press or a similar pressure tool.
- Diameter (Nominal): #8
- Thread Pitch: 32
- Length (Nominal): 1-1/4"
- Category: Self-Clinching Studs
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Flush Head
- Head Style Detail: Annular Groove and 12 Ribs
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated and Baked
- Coating Color: Clear
- Hardness Rating: Rockwell C45 min. / Core=C29-C38
- Origin: Origin Undefined
Product Videos
Custom Field
Thread Pitch 32
Product Class Externally Threaded Fasteners
Coating Color Clear
Head Style Detail Annular Groove and 12 Ribs
Origin Origin Undefined
Hardness Rating Rockwell C45 min. / Core=C29-C38
Order Machine Thread Fasteners
Material Steel
Head Style Flush Head
POS EL005-832X114-008000
Coating Zinc Plated and Baked
Brand Aspen Fasteners
Thread Direction Right-Hand Thread
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/EL005-832X114
Category Self-Clinching Studs
Diameter (Nominal) #8
System of Measurement Inch
Material Processes Case Hardened
Length (Nominal) 1-1/4"
