Product Description

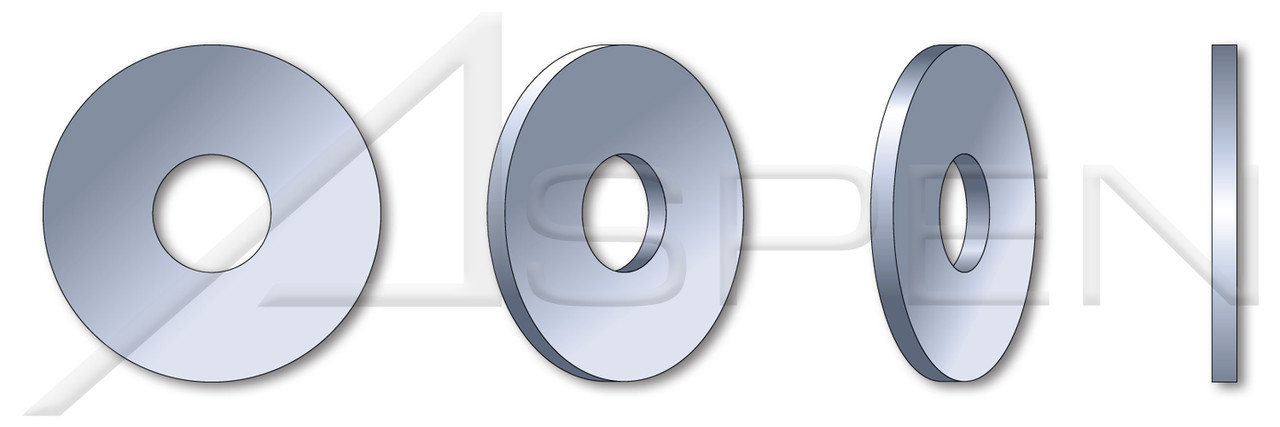

- USS flat washers are also known as plain washers or plate washers.
- The nominal diameter is the bolt size to use for this flat washer.
Approximate washer piece count per 100 LBS: 650 pieces
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 7/8"
- Diameter (Dimension): 0.875"
- Inside Diameter (Nominal): 15/16"
- Inside Diameter (Minimum): 0.931"
- Inside Diameter (Maximum): 0.968"
- Outside Diameter (Nominal): 2-1/4"
- Outside Diameter (Minimum): 2.243"
- Outside Diameter (Maximum): 2.28"
- Thickness (Nominal): 11/64"
- Thickness (Minimum): 0.136"
- Thickness (Maximum): 0.192"
- Category: Standard Flat Washers
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: USS Flat Washer Dimensions
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.21.1-2009
Product Videos
Custom Field
Brand Aspen Fasteners
Category Standard Flat Washers
Coating Zinc Plated
Coating Color Clear
Diameter (Dimension) 0.875"
Diameter (Nominal) 7/8"
Form and Design USS Flat Washer Dimensions
Inside Diameter (Maximum) 0.968"
Inside Diameter (Minimum) 0.931"
Inside Diameter (Nominal) 15/16"
Material Steel
Order Flat Washers
Origin Origin Undefined
Outside Diameter (Maximum) 2.28"
Outside Diameter (Minimum) 2.243"
Outside Diameter (Nominal) 2-1/4"
POS WA029-78-000050,WA029-78-000025
Product Class Washers
Standards and Specifications ASME B18.21.1-2009
System of Measurement Inch
Thickness (Maximum) 0.192"
Thickness (Minimum) 0.136"
Thickness (Nominal) 11/64"
