Product Description
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- An internal hex socket drive is also known as an Allen drive.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
- Diameter (Nominal): 7/8"
- Diameter (Dimension): 0.875"
- Thread Pitch: 9
- Length (Nominal): 8"
- Thread Length: 3"
- Recess Size: 3/4"
- Head Diameter: 1.312"
- Head Height: 0.875"
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Form and Design: 1960 Series
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Pitch: UNC Coarse Thread
- Threading: Thread Class 3A
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Alloy Steel
- Material Processes: Heat Treated
- Coating: Oxidized
- Coating Color: Black
- Hardness Rating: Rockwell C38-C43
- Standards and Specifications: ASME/ANSI B18.3-2002 and ASTM A574

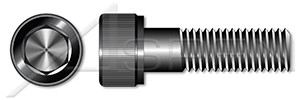

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Diameter/Pitch 7/8"-9
Standards and Specifications ASME/ANSI B18.3-2002 and ASTM A574
System of Measurement US Units
Length 8"
Material Alloy Steel
Head Style Cylindrical Head
Coating Process Oxidized, Black
Drive Style Hex Socket Drive
Category Socket Head Cap Screws
