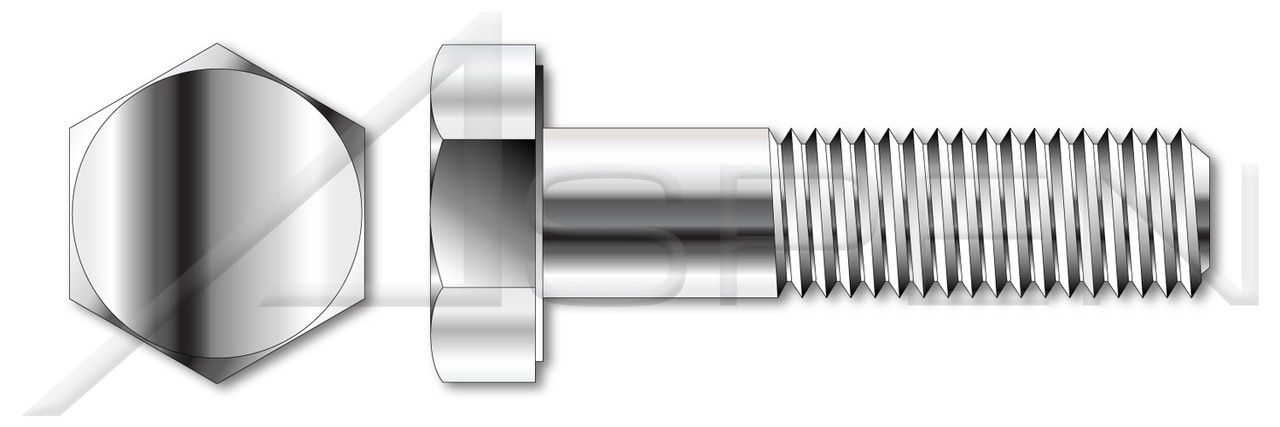

Product Description
- Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
- Type 316 stainless steel is considered "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- The washer face under the head provides a precision bearing surface.
- The chamfered point improves engagement with a nut or pre-tapped hole.
- Diameter (Nominal): 7/8"
- Thread Pitch: 9
- Diameter (Dimension): 0.875"
- Diameter (Minimum): 0.866"
- Diameter (Maximum): 0.875"
- Length (Nominal): 7"
- Thread Length (Nominal): 2.25"
- Across Flats (Basic): 1-5/16"
- Across Flats (Minimum): 1.285"
- Across Flats (Maximum): 1.312"
- Head Height, Overall: 35/64"
- Head Height, Overall (Minimum): 0.531"
- Head Height, Overall (Maximum): 0.563"
- Category: Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Head Style Detail: Washer Face
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Point: Chamfered Point
- Material: Stainless Steel
- Material Grade: AISI 316 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.1
Product Videos
Custom Field
Across Flats (Basic) 1-5/16"
Across Flats (Maximum) 1.312"
Across Flats (Minimum) 1.285"
Brand Aspen Fasteners
Category Cap Screws
Coating Uncoated
Diameter (Dimension) 0.875"
Diameter (Maximum) 0.875"
Diameter (Minimum) 0.866"
Diameter (Nominal) 7/8"
Drive Style External Hex Drive
Head Height, Overall 35/64"
Head Height, Overall (Maximum) 0.563"
Head Height, Overall (Minimum) 0.531"
Head Style Hex Head
Head Style Detail Washer Face
Length (Nominal) 7"
Material Stainless Steel
Material Grade AISI 316 Stainless Steel
Order Machine Thread Fasteners
Origin Origin Undefined
POS ST007-789X7-000002
Point Chamfered Point
Product Class Externally Threaded Fasteners
Standards and Specifications ASME B18.2.1
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length (Nominal) 2.25"
Thread Pitch 9
