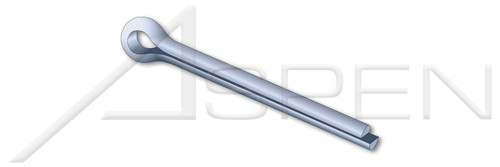

Product Description
- Cotter pins are also known as split pins but these should not be confused with rolled split pins.
- Cotter pins have one prong slightly longer than the other so that they're easy to open.
- Diameter (Nominal): 7/64"
- Diameter (Dimension): 0.109"
- Diameter (Minimum): 0.100"
- Diameter (Maximum): 0.107"
- Length (Nominal): 1/2"
- Effective Length: 0.5"
- Effective Length (Minimum): 0.47"
- Effective Length (Maximum): 0.53"
- Head Diameter: 0.22"
- Prong End Offset: 0.05"
- Category: Standard Cotter Pins
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: Extended Prong
- Point: Chisel Point
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.8.1
Product Videos
Custom Field
Brand Aspen Fasteners
Category Standard Cotter Pins
Coating Zinc Plated
Coating Color Clear
Diameter (Dimension) 0.109"
Diameter (Maximum) 0.107"
Diameter (Minimum) 0.100"
Diameter (Nominal) 7/64"
Effective Length 0.5"
Effective Length (Maximum) 0.53"
Effective Length (Minimum) 0.47"
Form and Design Extended Prong
Head Diameter 0.22"
Length (Nominal) 1/2"
Material Steel
Order Cotter Pins
Origin Origin Undefined
POS PI001-764X12X05X022-005000
Point Chisel Point
Product Class Pins and Wireforms
Prong End Offset 0.05"
Standards and Specifications ASME B18.8.1
System of Measurement Inch
