Product Description

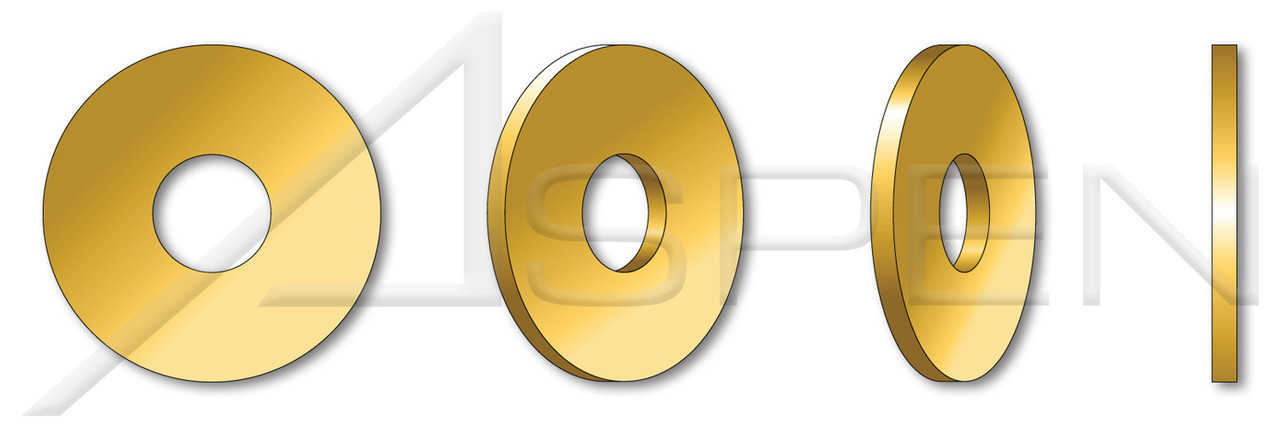

- USS flat washers are also known as plain washers or plate washers.
- The nominal diameter is the bolt size to use for this flat washer.
Approximate washer piece count per 100 LBS: 4,100 pieces
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 7/16"
- Diameter (Dimension): 0.4375"
- Inside Diameter (Nominal): 1/2"
- Inside Diameter (Minimum): 0.495"
- Inside Diameter (Maximum): 0.515"
- Outside Diameter (Nominal): 1-1/4"
- Outside Diameter (Minimum): 1.243"
- Outside Diameter (Maximum): 1.28"
- Thickness (Nominal): 5/64"
- Thickness (Minimum): 0.064"
- Thickness (Maximum): 0.104"
- Category: Standard Flat Washers
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: USS Flat Washer Dimensions
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Yellow
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.21.1-2009
Product Videos
Custom Field
Brand Aspen Fasteners
Category Standard Flat Washers
Coating Zinc Plated
Coating Color Yellow
Diameter (Dimension) 0.4375"
Diameter (Nominal) 7/16"
Form and Design USS Flat Washer Dimensions
Inside Diameter (Maximum) 0.515"
Inside Diameter (Minimum) 0.495"
Inside Diameter (Nominal) 1/2"
Material Steel
Order Flat Washers
Origin Origin Undefined
Outside Diameter (Maximum) 1.28"
Outside Diameter (Minimum) 1.243"
Outside Diameter (Nominal) 1-1/4"
POS WA028-716-000050,WA028-716-000025
Product Class Washers
Standards and Specifications ASME B18.21.1-2009
System of Measurement Inch
Thickness (Maximum) 0.104"
Thickness (Minimum) 0.064"
Thickness (Nominal) 5/64"
