Product Description

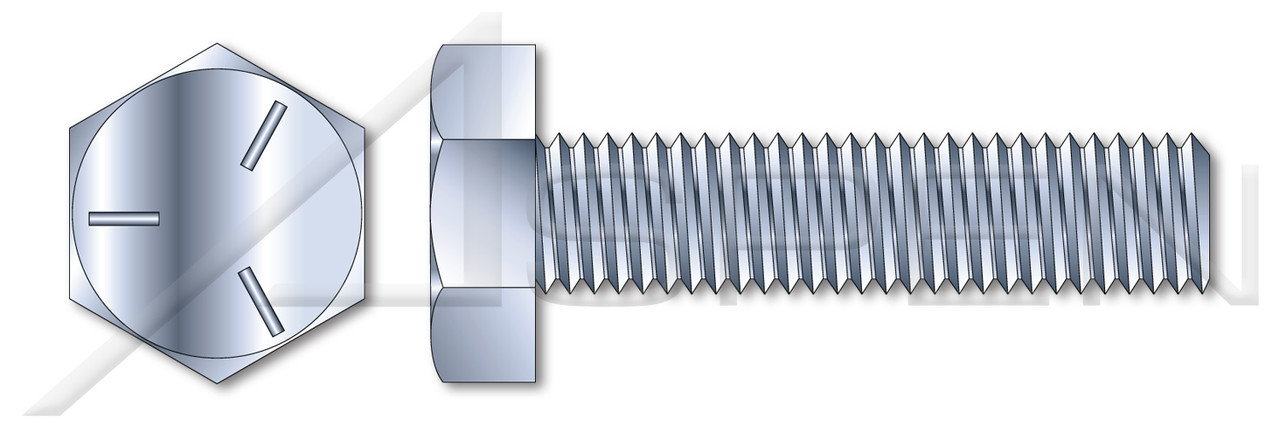

- Tap bolts are fully threaded hex bolts.
- The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
- Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
- Diameter (Nominal): 7/16"
- Thread Pitch: 20
- Diameter (Dimension): 0.4375"
- Length (Nominal): 1-1/2"
- Thread Length (Nominal): 1.5"
- Across Flats (Basic): 5/8"
- Head Height, Overall: 0.297"
- Category: Tap Bolts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Grade 5
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.1 and SAE J429
Product Videos
System of Measurement
System of Measurement Inch
Coating Color Clear
Order Machine Thread Fasteners
Head Height, Overall 0.297"
Thread Pitch 20
Thread Direction Right-Hand Thread
Material Steel
Thread Length Full Thread
Length (Nominal) 1-1/2"
Diameter (Dimension) 0.4375"
Coating Zinc Plated
Product Class Externally Threaded Fasteners
Category Tap Bolts
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/BO041-71620X112X15
Standards and Specifications ASME B18.2.1 and SAE J429
Brand Aspen Fasteners
POS BO041-71620X112X15-000300
Head Style Hex Head
Material Grade Grade 5
Origin Origin Undefined
Thread Length (Nominal) 1.5"
Across Flats (Basic) 5/8"
Drive Style External Hex Drive
Diameter (Nominal) 7/16"
