Product Description

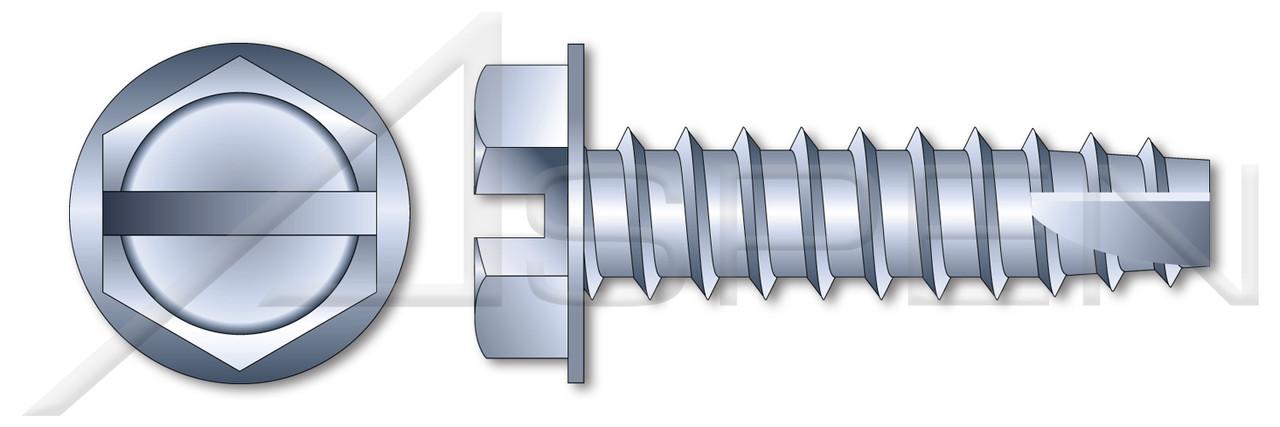

- Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
- Type 25 point screws are similar to type 23 but are equipped with a coarse type B thread.
- Diameter (Nominal): #6
- Length (Nominal): 1/4"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Thread Cutting Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Hex Indented Washer Head
- Drive Style: Hex Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Type "25"
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated and Baked
- Coating Color: Clear
- Hardness Rating: Rockwell C45 min. / Core=C28-C38
- Standards and Specifications: ASME B18.6.3 and SAE J933
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Material Steel
Length 1/4"
Coating Process Zinc Plated and Baked, Clear
Diameter/Pitch #6
Head Style Hex Indented Washer Head
System of Measurement US Units
Drive Style Hex Slotted Drive
Category Thread Cutting Screws
Standards and Specifications ASME B18.6.3 and SAE J933
