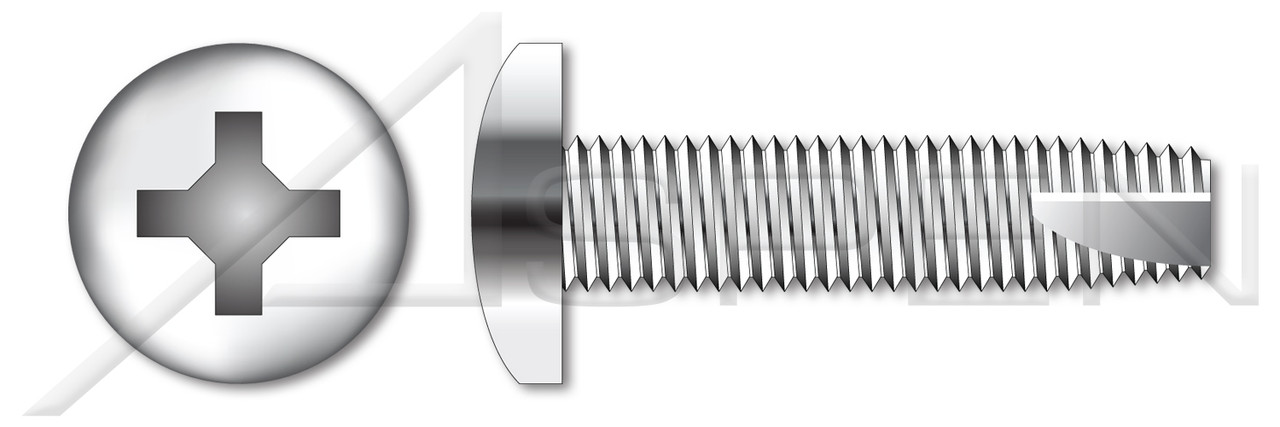

Product Description
- Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
- Type 23 point screws provides maximum thread cutting area and exceptional chip clearing.
- Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #6
- Thread Pitch: 32
- Length (Nominal): 5/16"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Thread Cutting Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Type "23"
- Material: Stainless Steel
- Material Grade: AISI 304 Stainless Steel (18-8)
- Coating: Uncoated
- Standards and Specifications: ASME B18.6.3
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Category Thread Cutting Screws
Length 5/16"
Drive Style Cruciform Recess Drive
Diameter/Pitch #6-32
System of Measurement US Units
Head Style Pan Head
Coating Process Uncoated
Standards and Specifications ASME B18.6.3
Material AISI 304 Stainless Steel (18-8)
