Product Description

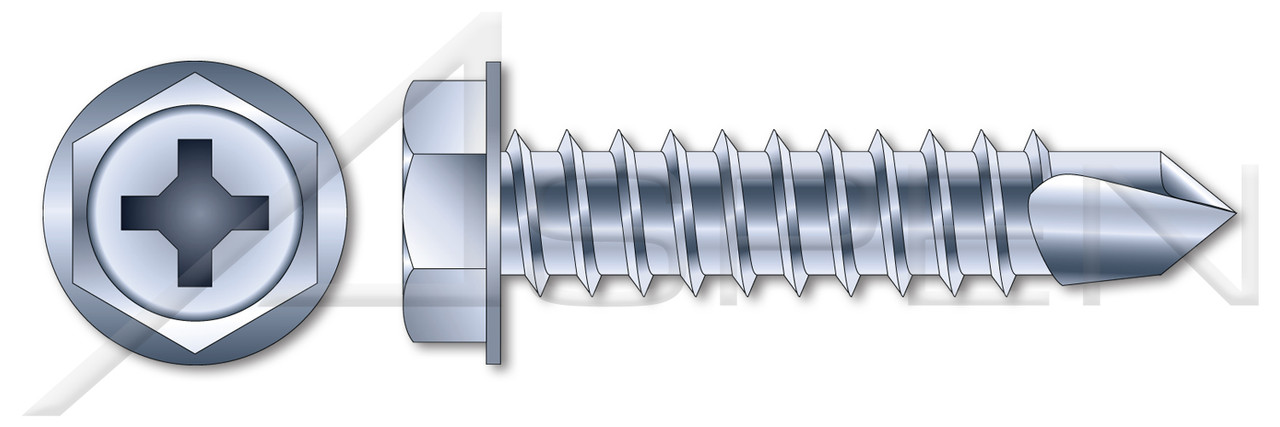

- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
- Diameter (Nominal): #6
- Diameter (Dimension): 0.1406"
- Thread Pitch: 20
- Length (Nominal): 1"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Drilling Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Hex Indented Washer Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated and Baked
- Coating Color: Clear
- Hardness Rating: Rockwell C50-C56 / Core=C32-C40
- Standards and Specifications: SAE J78
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Length 1"
Standards and Specifications SAE J78
Coating Process Zinc Plated and Baked, Clear
Material Steel
System of Measurement US Units
Diameter/Pitch #6-20
Category Self-Drilling Screws
Drive Style Cruciform Recess Drive
Head Style Hex Indented Washer Head
