Product Description

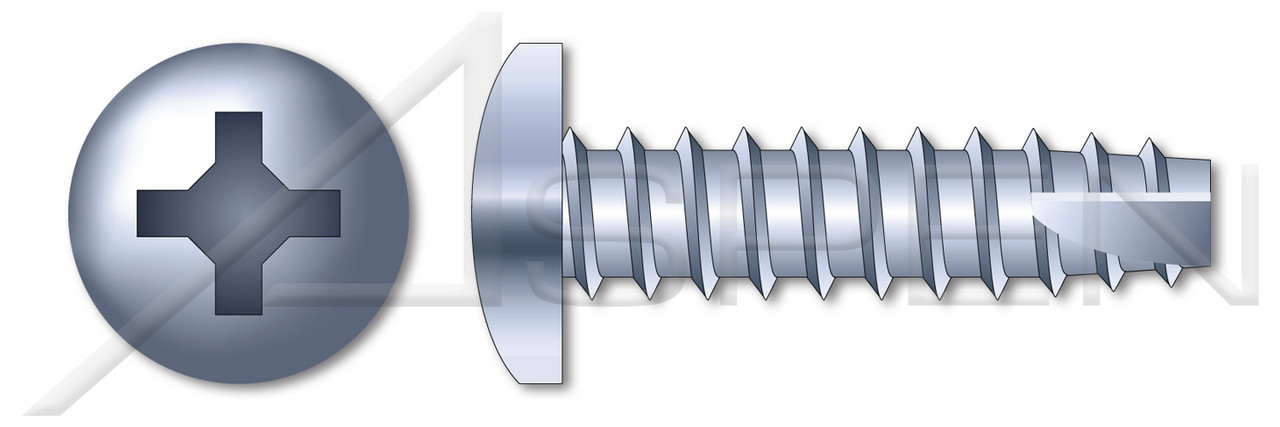

- Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
- Type 25 point screws are similar to type 23 but are equipped with a coarse type B thread.
- Diameter (Nominal): #5
- Length (Nominal): 3/8"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Thread Cutting Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Type "25"
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated and Baked
- Coating Color: Clear
- Hardness Rating: Rockwell C45 min. / Core=C28-C38
- Standards and Specifications: ASME B18.6.3 and SAE J933
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Category Thread Cutting Screws
Length 3/8"
Diameter/Pitch #5
Standards and Specifications ASME B18.6.3 and SAE J933
Head Style Pan Head
Material Steel
System of Measurement US Units
Coating Process Zinc Plated and Baked, Clear
Drive Style Cruciform Recess Drive
