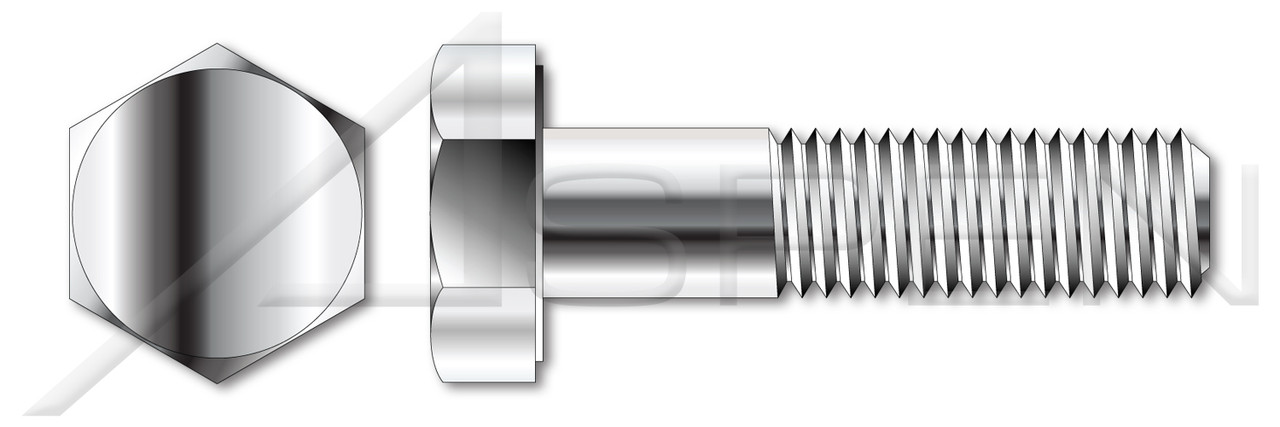

Product Description
- Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
- Type 316 stainless steel is considered "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- The washer face under the head provides a precision bearing surface.
- The chamfered point improves engagement with a nut or pre-tapped hole.
- Diameter (Nominal): 5/8"
- Thread Pitch: 11
- Diameter (Dimension): 0.625"
- Diameter (Minimum): 0.617"
- Diameter (Maximum): 0.625"
- Length (Nominal): 3/4"
- Thread Length (Nominal): 0.75"
- Across Flats (Basic): 15/16"
- Across Flats (Minimum): 0.922"
- Across Flats (Maximum): 0.938"
- Head Height, Overall: 25/64"
- Head Height, Overall (Minimum): 0.378"
- Head Height, Overall (Maximum): 0.403"
- Category: Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Head Style Detail: Washer Face
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Point: Chamfered Point
- Material: Stainless Steel
- Material Grade: AISI 316 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.1
Product Videos
Custom Field
Across Flats (Basic) 15/16"
Across Flats (Maximum) 0.938"
Across Flats (Minimum) 0.922"
Brand Aspen Fasteners
Category Cap Screws
Coating Uncoated
Diameter (Dimension) 0.625"
Diameter (Maximum) 0.625"
Diameter (Minimum) 0.617"
Diameter (Nominal) 5/8"
Drive Style External Hex Drive
Head Height, Overall 25/64"
Head Height, Overall (Maximum) 0.403"
Head Height, Overall (Minimum) 0.378"
Head Style Hex Head
Head Style Detail Washer Face
Length (Nominal) 3/4"
Material Stainless Steel
Material Grade AISI 316 Stainless Steel
Order Machine Thread Fasteners
Origin Origin Undefined
POS ST007-5811X34-000060
Point Chamfered Point
Product Class Externally Threaded Fasteners
Standards and Specifications ASME B18.2.1
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length (Nominal) 0.75"
Thread Pitch 11
