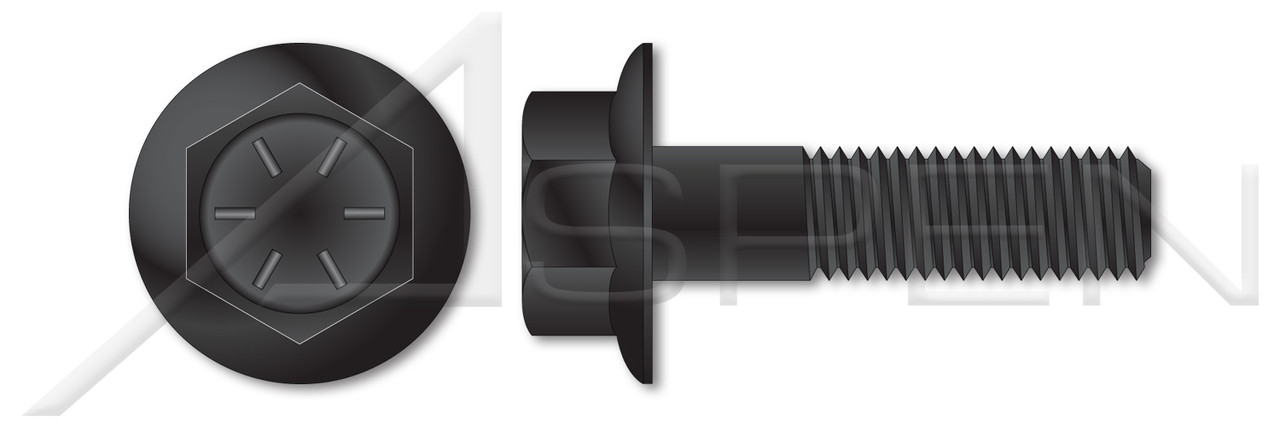

Product Description
- Sometimes called Frame Bolts as these bolts are commonly used on truck frames.
- Also known as hex flange screws or hex washer bolts.
- Flange under the head acts like a washer to increase the bearing surface and distribute the load.
- The heads of grade 8 steel fasteners are typically marked with 6 raised radial lines.
- Grade 8 steel fasteners have a minimum tensile strength of 150,000 pounds per square inch.
- Diameter (Nominal): 5/8"
- Thread Pitch: 11
- Diameter (Dimension): 0.625"
- Length (Nominal): 2-1/4"
- Thread Length (Nominal): 1.5"
- Across Flats (Basic): 15/16"
- Across Flats (Minimum): 0.922"
- Across Flats (Maximum): 0.938"
- Head Height, Overall: 0.62"
- Flange Diameter: 1.33"
- Category: Flange Bolts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Indented Flange Head
- Drive Style: External Hex Drive
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Grade 8
- Coating: Phosphate Coated and Oiled
- Coating Color: Black
- Origin: Origin Undefined
- Standards and Specifications: IFI-111, ASME B18.2.1 and SAE J429
