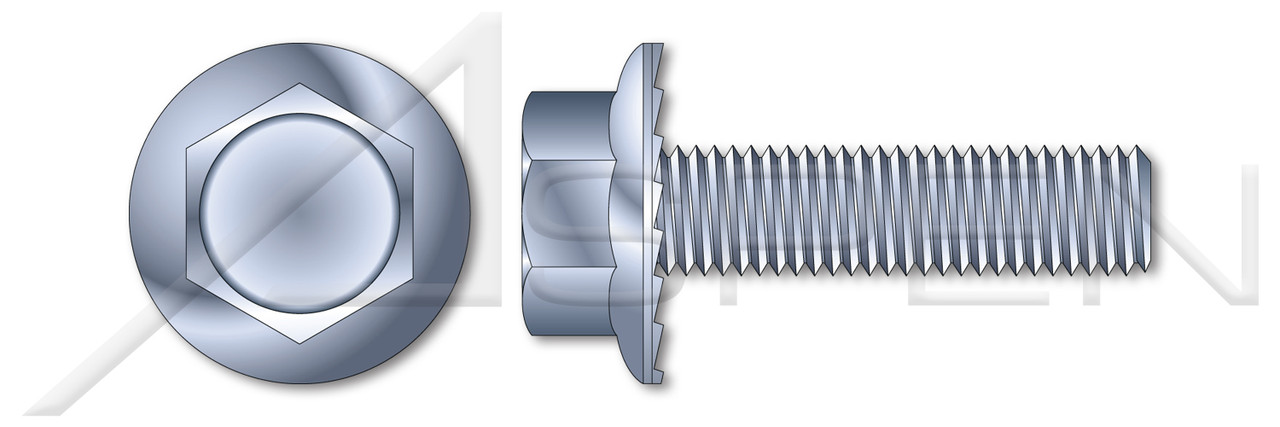

Product Description
- Also known as hex flange bolts, frame bolts or hex washer bolts.
- Flange under the head acts like a washer to increase the bearing surface and distribute the load.
- Serrated teeth under the head bite into the mating surface as tightened to prevent loosening.
- Diameter (Nominal): 5/8"
- Thread Pitch: 11
- Diameter (Dimension): 0.625"
- Length (Nominal): 1"
- Thread Length (Nominal): 1"
- Across Flats (Basic): 15/16"
- Across Flats (Minimum): 0.922"
- Across Flats (Maximum): 0.938"
- Head Height, Overall: 0.62"
- Flange Diameter: 1.33"
- Category: Flange Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Flange Head
- Head Style Detail: Locking Serrations
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated
- Coating Color: Clear
- Hardness Rating: Rockwell C40 / Core C26-C34
- Origin: Origin Undefined
