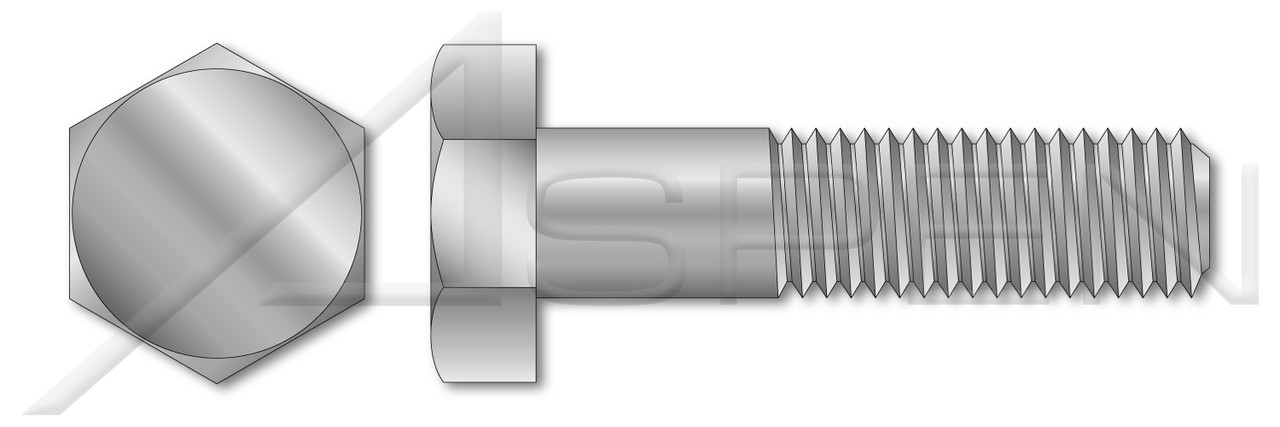

Product Description
- Machine bolts are most commonly used in construction applications.
- Machine bolts tolerances are typically less precise than those of cap screws.
- Unlike cap screws, does not have a washer face or a machined point.
- Diameter (Nominal): 5/16"
- Thread Pitch: 18
- Diameter (Dimension): 0.3125"
- Length (Nominal): 5"
- Thread Length (Nominal): 0.875"
- Across Flats (Basic): 1/2"
- Head Height, Overall: 0.219"
- Category: Machine Bolts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Low Carbon Steel
- Coating: Hot Dip Galvanized
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.1
Product Videos
Custom Field
Diameter (Nominal) 5/16"
Standards and Specifications ASME B18.2.1
Thread Pitch 18
Product Class Externally Threaded Fasteners
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/BO033-51618X5
POS BO033-51618X5-000400,BO033-51618X5-000250,BO033-51618X5-000500
Material Grade Low Carbon Steel
Brand Aspen Fasteners
Thread Direction Right-Hand Thread
Length (Nominal) 5"
Across Flats (Basic) 1/2"
Order Machine Thread Fasteners
Thread Length (Nominal) 0.875"
Coating Hot Dip Galvanized
Material Steel
Diameter (Dimension) 0.3125"
Head Height, Overall 0.219"
Drive Style External Hex Drive
System of Measurement Inch
Head Style Hex Head
Category Machine Bolts
Coating Color Clear
Origin Origin Undefined
