Product Description

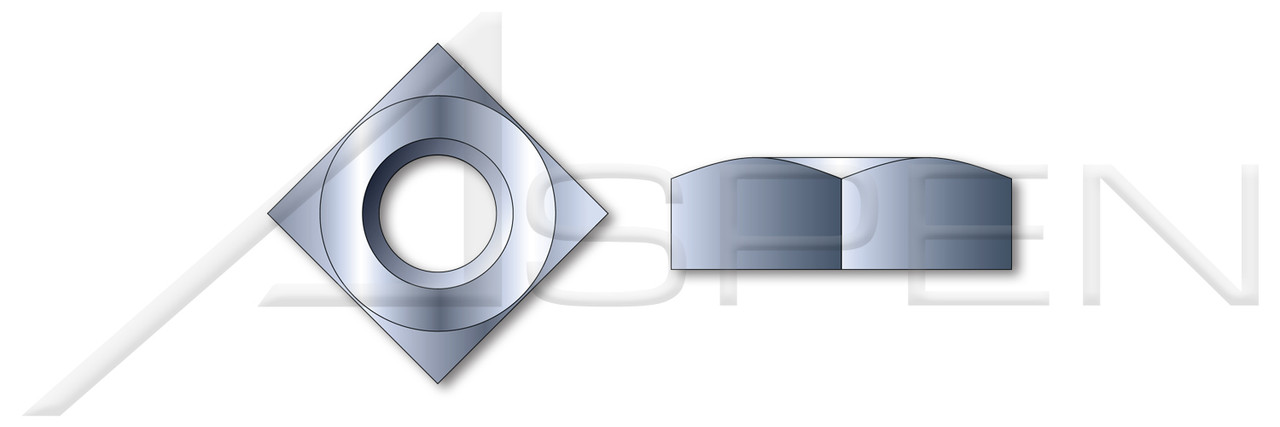

- Regular square nuts are chamfered on the top side.
- Diameter (Nominal): 5/16"
- Thread Pitch: 18
- Diameter (Dimension): 0.3125"
- Thread Length (Nominal): 0.266"
- Across Flats (Basic): 9/16"
- Across Flats (Minimum): 0.547"
- Across Flats (Maximum): 0.562"
- Height (Basic): 17/64"
- Height (Minimum): 0.249"
- Height (Maximum): 0.283"
- Category: Square Regular Nuts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Drive Style: External Square Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.2 and SAE J995
Product Videos
Custom Field
Across Flats (Basic) 9/16"
Across Flats (Maximum) 0.562"
Across Flats (Minimum) 0.547"
Brand Aspen Fasteners
Category Square Regular Nuts
Coating Zinc Plated
Coating Color Clear
Diameter (Dimension) 0.3125"
Diameter (Nominal) 5/16"
Drive Style External Square Drive
Height (Basic) 17/64"
Height (Maximum) 0.283"
Height (Minimum) 0.249"
Material Steel
Order Nuts
Origin Origin Undefined
POS NU097-51618-002500,NU097-51618-001000,NU097-51618-002000
Product Class Internally Threaded Fasteners
Standards and Specifications ASME B18.2.2 and SAE J995
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Length (Nominal) 0.266"
Thread Pitch 18
