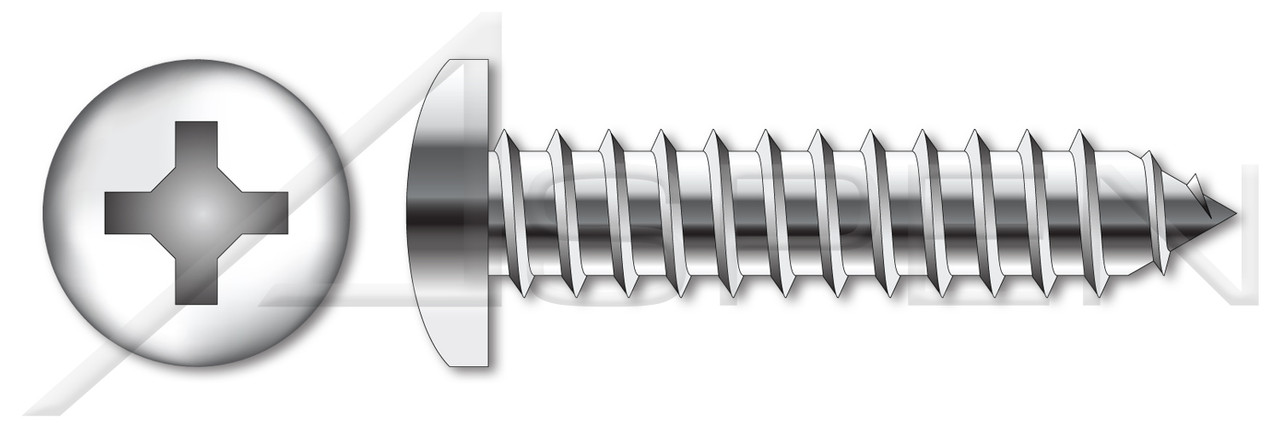

Product Description
- Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
- Type "AB" sheet metal tapping screws feature a sharp point and fine threading.
- Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #4
- Length (Nominal): 1"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Tapping Sheet Metal Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Form and Design: Type "AB"
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: AISI 304 Stainless Steel (18-8)
- Coating: Uncoated
- Standards and Specifications: ASME B18.6.3
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Standards and Specifications ASME B18.6.3
Drive Style Cruciform Recess Drive
Length 1"
Coating Process Uncoated
Head Style Pan Head
Material AISI 304 Stainless Steel (18-8)
Category Self-Tapping Sheet Metal Screws
Diameter/Pitch #4
System of Measurement US Units
