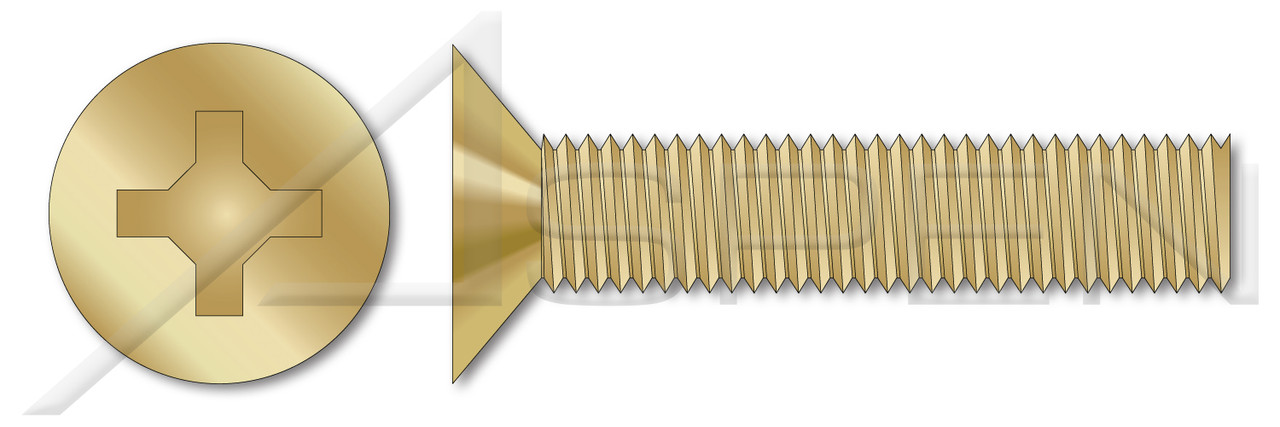

Product Description
- Military grade fasteners are DFARS compliant and made in North America. Certifications available.
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- Cadmium plating offer outstanding corrosion resistance, even in high-salt environments.
- Diameter (Nominal): #4
- Thread Pitch: 48
- Diameter (Dimension): 0.1098"
- Length (Nominal): 1-3/8"
- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 100 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Cadmium Plated
- Coating Color: Yellow
- Origin: Made in U.S.A.
- Standards and Specifications: MS24693, DFARS
Product Videos
Custom Field
Brand Aspen Fasteners
Category Machine Screws
Coating Cadmium Plated
Coating Color Yellow
Diameter (Dimension) 0.1098"
Diameter (Nominal) #4
Drive Detail Phillips Type H
Drive Style Cruciform Recess Drive
Head Style Flat Countersunk Head
Head Style Detail 100 Degree Countersink
Length (Nominal) 1-3/8"
Material Steel
Order Machine Thread Fasteners
Origin Made in U.S.A.
POS MI025-448X138-005000
Product Class Externally Threaded Fasteners
Standards and Specifications MS24693, DFARS
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Pitch 48
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/MI025-448X138
