Product Description

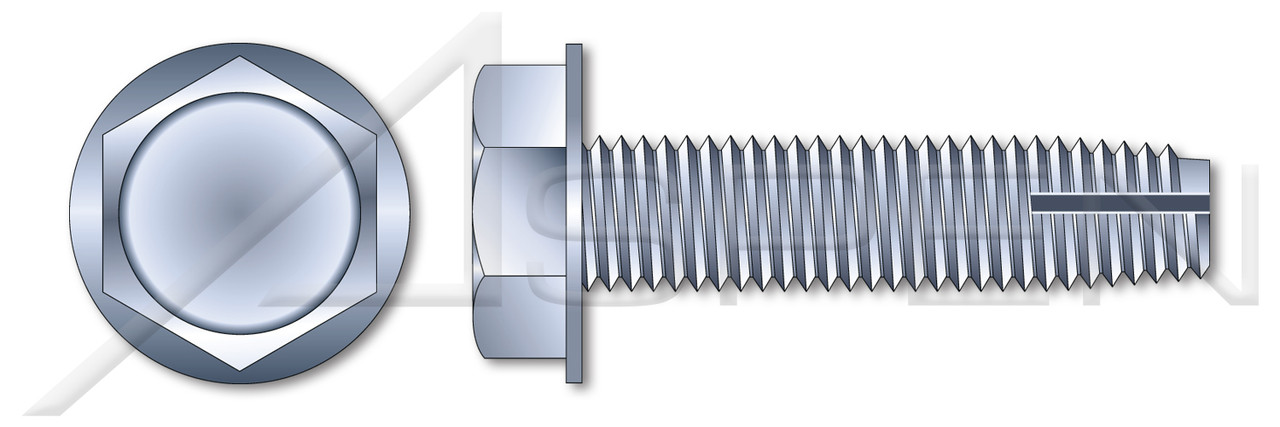

- Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
- Type 1 point thread cutting screws have a single flute for general purpose use.
- Diameter (Nominal): 3/8"
- Thread Pitch: 16
- Diameter (Dimension): 0.375"
- Length (Nominal): 5/8"
- Category: Thread Cutting Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Indented Washer Head
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Type "1"
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated and Baked
- Coating Color: Clear
- Hardness Rating: Rockwell C45 min. / Core=C28-C38
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J933
Product Videos
Custom Field
Brand Aspen Fasteners
Category Thread Cutting Screws
Coating Zinc Plated and Baked
Coating Color Clear
Diameter (Dimension) 0.375"
Diameter (Nominal) 3/8"
Drive Style External Hex Drive
Hardness Rating Rockwell C45 min. / Core=C28-C38
Head Style Hex Indented Washer Head
Length (Nominal) 5/8"
Material Steel
Material Processes Case Hardened
Order Thread Cutting Fasteners
Origin Origin Undefined
POS SC254-3816X58-001000
Point Type "1"
Product Class Externally Threaded Fasteners
Standards and Specifications ASME B18.6.3 and SAE J933
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Pitch 16
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/SC254-3816X58
