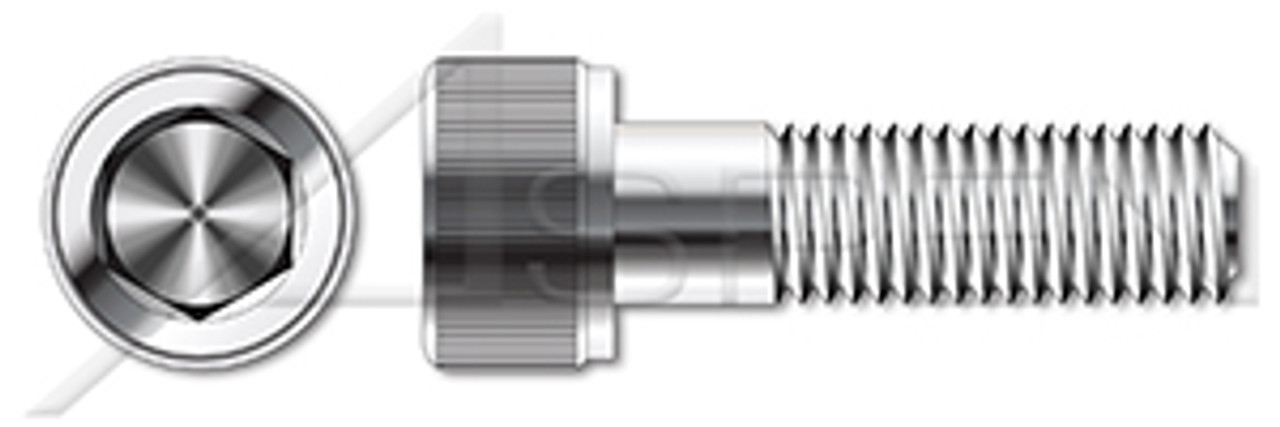

Product Description
- Superior quality parts by Holo-Krome, made in the U.S.A.
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- An internal hex socket drive is also known as an Allen drive.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): 3/8"
- Diameter (Dimension): 0.375"
- Thread Pitch: 16
- Length (Nominal): 2"
- Recess Size: 5/16"
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: US Units
- Brand: Holo-Krome®
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Pitch: UNRC Coarse Thread
- Threading: Thread Class 3A
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: AISI 304 Stainless Steel (18-8)
- Material Processes: Passivated
- Coating: Uncoated
- Origin: Made in U.S.A.
- Standards and Specifications: ASME/ANSI B18.3-2002 and ASTM A574
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Diameter/Pitch 3/8"-16
Standards and Specifications ASME/ANSI B18.3-2002 and ASTM A574
Head Style Cylindrical Head
Drive Style Hex Socket Drive
Material AISI 304 Stainless Steel (18-8)
System of Measurement US Units
Coating Process Uncoated
Length 2"
Category Socket Head Cap Screws
