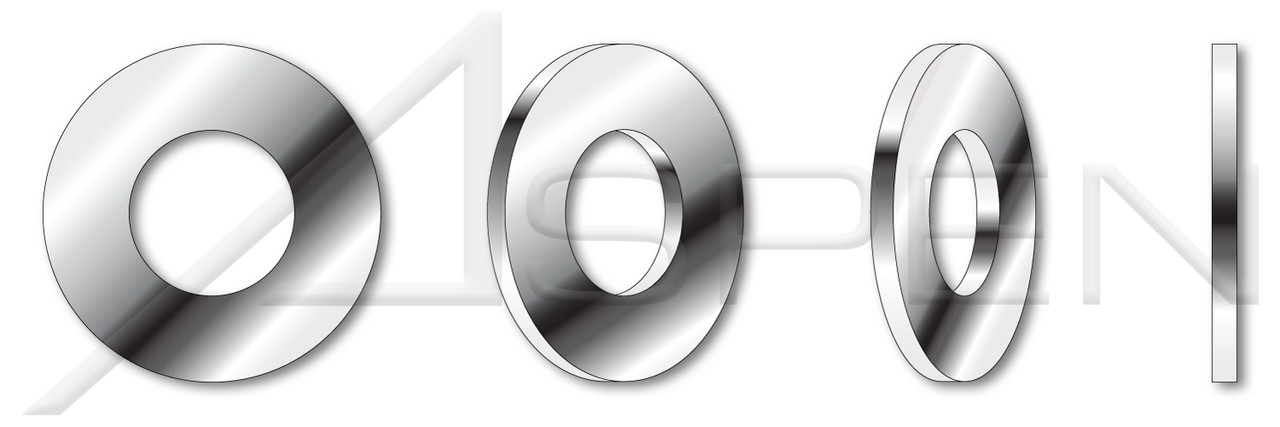

Product Description
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- The nominal diameter is the bolt size to use for this flat washer.
- Diameter (Nominal): 3/4"
- Diameter (Dimension): 0.75"
- Inside Diameter (Nominal): 0.812"
- Inside Diameter (Minimum): 0.807"
- Inside Diameter (Maximum): 0.817"
- Outside Diameter (Nominal): 1-3/4"
- Outside Diameter (Minimum): 1.745"
- Outside Diameter (Maximum): 1.755"
- Thickness (Minimum): 0.082"
- Thickness (Maximum): 0.097"
- Category: Standard Flat Washers
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
Product Videos
Custom Field
Brand Aspen Fasteners
Category Standard Flat Washers
Coating Uncoated
Diameter (Dimension) 0.75"
Diameter (Nominal) 3/4"
Inside Diameter (Maximum) 0.817"
Inside Diameter (Minimum) 0.807"
Inside Diameter (Nominal) 0.812"
Material Stainless Steel
Material Grade 18-8 Stainless Steel
Order Flat Washers
Origin Origin Undefined
Outside Diameter (Maximum) 1.755"
Outside Diameter (Minimum) 1.745"
Outside Diameter (Nominal) 1-3/4"
POS ST206-34X134-000500,ST206-34X0812X34X0109-000300
Product Class Washers
System of Measurement Inch
Thickness (Maximum) 0.097"
Thickness (Minimum) 0.082"
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/ST206-34X134
