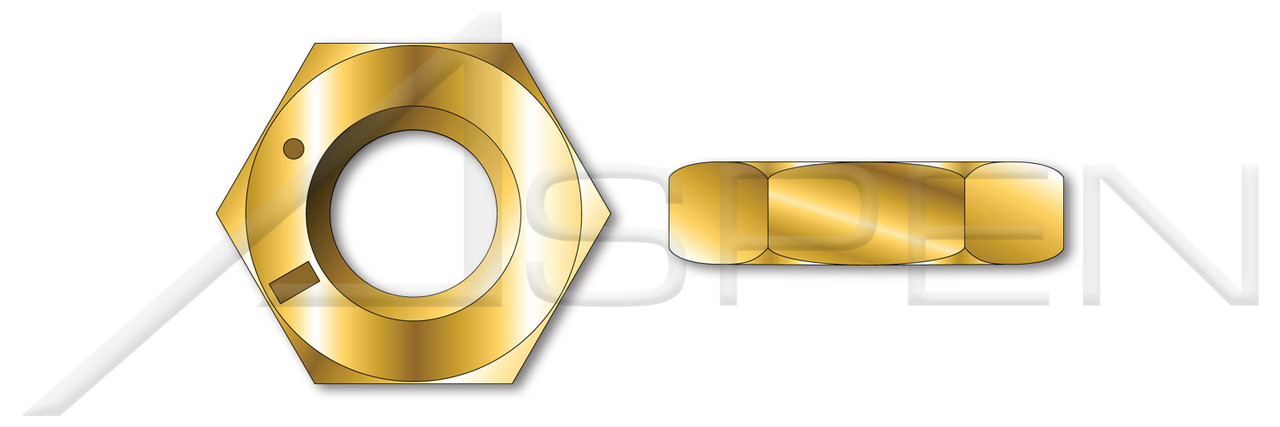

Product Description
- Jam nuts are also known as low form nuts or thin nuts.
- Jam nuts are about half the height of regular finished nuts.
- The heads of grade 8 steel fasteners are typically marked with 6 raised radial lines.
- Grade 8 steel fasteners have a minimum tensile strength of 150,000 pounds per square inch.
- Diameter (Nominal): 3/4"
- Thread Pitch: 16
- Diameter (Dimension): 0.75"
- Thread Length (Nominal): 0.422"
- Across Flats (Basic): 1-1/8"
- Across Flats (Minimum): 1.088"
- Across Flats (Maximum): 1.125"
- Height (Basic): 27/64"
- Height (Minimum): 0.398"
- Height (Maximum): 0.446"
- Category: Hex Jam Thin Nuts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Grade 8
- Coating: Zinc Plated
- Coating Color: Yellow
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.2 and SAE J995
Product Videos
Custom Field
Across Flats (Basic) 1-1/8"
Across Flats (Maximum) 1.125"
Across Flats (Minimum) 1.088"
Brand Aspen Fasteners
Category Hex Jam Thin Nuts
Coating Zinc Plated
Coating Color Yellow
Diameter (Dimension) 0.75"
Diameter (Nominal) 3/4"
Drive Style External Hex Drive
Height (Basic) 27/64"
Height (Maximum) 0.446"
Height (Minimum) 0.398"
Material Steel
Material Grade Grade 8
Order Nuts
Origin Origin Undefined
POS NU027-3416-000400
Product Class Internally Threaded Fasteners
Standards and Specifications ASME B18.2.2 and SAE J995
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Length (Nominal) 0.422"
Thread Pitch 16
