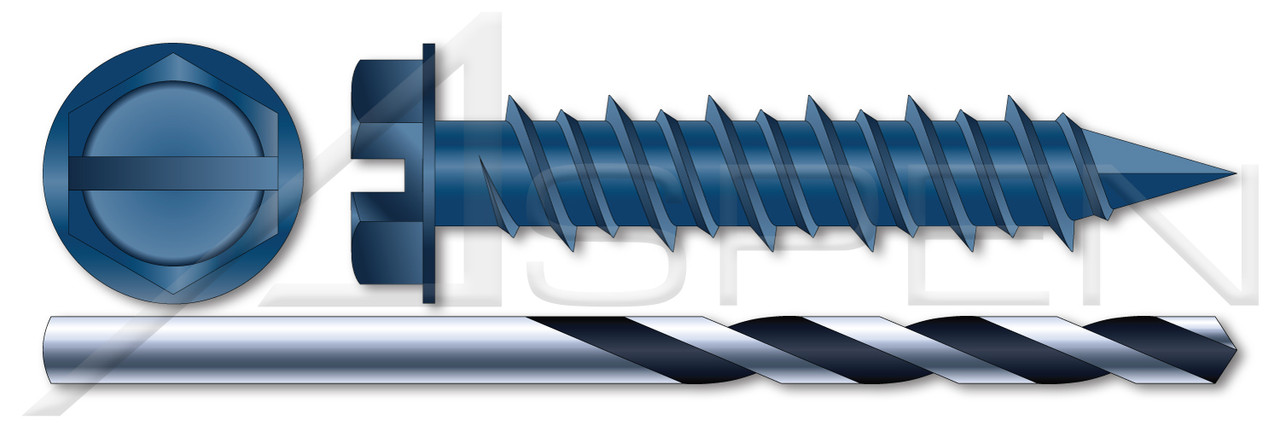

Product Description
- For use in cement blocks, bricks or concrete.
- Ideal for light-to-medium duty applications.
- Double-lead alternating raised and lowered threading with notches cut into the raised threads.
- Excellent corrosion prevention with a triple-layered Ruspert coating.
- Pre-drill hole to a minimum of 1/2" deeper than screw length.
Each package includes a high quality carbide drill bit.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 3/16"
- Length (Nominal): 2-1/4"
- Across Flats (Basic): 1/4"
- Head Height, Overall: 7/64"
- Flange Diameter: 0.3438"
- Flange Thickness: 0.0313"
- Category: Concrete Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: Includes Drill Bit
- Head Style: Hex Indented Washer Head
- Drive Style: Hex Slotted Drive
- Threading: Double-Lead Thread
- Thread Direction: Right-Hand Thread
- Point: Diamond-Shaped Nail Point
- Material: Steel
- Material Grade: AISI-SAE C1022 Steel
- Material Processes: Case Hardened
- Coating: Ceramic Coated
- Coating Brand: Ruspert®
- Coating Color: Blue
- Coating Standard: 500 Hour Salt Spray Test
- Hardness Rating: Rockwell C50 min. / Core=C32-C39
- Origin: Origin Undefined
Product Videos
Custom Field
Coating Brand Ruspert(r)
System of Measurement Inch
Coating Color Blue
POS AN002-316X214-000100,AN002-316X214-000700
Flange Diameter 0.3438"
Hardness Rating Rockwell C50 min. / Core=C32-C39
Product Class Externally Threaded Fasteners
Drive Style Hex Slotted Drive
Form and Design Includes Drill Bit
Head Style Hex Indented Washer Head
Origin Origin Undefined
Category Concrete Screws
Diameter (Nominal) 3/16"
Point Diamond-Shaped Nail Point
Brand Aspen Fasteners
Material Grade AISI-SAE C1022 Steel
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/AN002-316X214
Flange Thickness 0.0313"
Thread Direction Right-Hand Thread
Threading Double-Lead Thread
Material Steel
Across Flats (Basic) 1/4"
Order Thread Cutting Fasteners
Coating Ceramic Coated
Length (Nominal) 2-1/4"
Coating Standard 500 Hour Salt Spray Test
Head Height, Overall 7/64"
Material Processes Case Hardened
