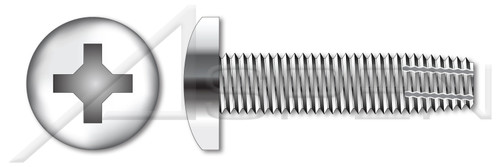

Product Description
- Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
- Type F point screws have a machine screw thread and a blunt tapered point.
- Ideal for use with heavy gauge sheet metal, zinc, cast iron and lead die castings.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #2
- Thread Pitch: 56
- Diameter (Dimension): 0.0781"
- Length (Nominal): 3/16"
- Category: Thread Cutting Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Type "F"
- Material: Stainless Steel
- Material Grade: AISI 410 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3
Product Videos
Custom Field
Brand Aspen Fasteners
Category Thread Cutting Screws
Coating Uncoated
Diameter (Dimension) 0.0781"
Diameter (Nominal) #2
Drive Detail Phillips Type H
Drive Style Cruciform Recess Drive
Head Style Pan Head
Length (Nominal) 3/16"
Material Stainless Steel
Material Grade AISI 410 Stainless Steel
Order Thread Cutting Fasteners
Origin Origin Undefined
POS ST138-N256X316-010000,ST138-N256X316-005000
Point Type "F"
Product Class Externally Threaded Fasteners
Standards and Specifications ASME B18.6.3
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Pitch 56
