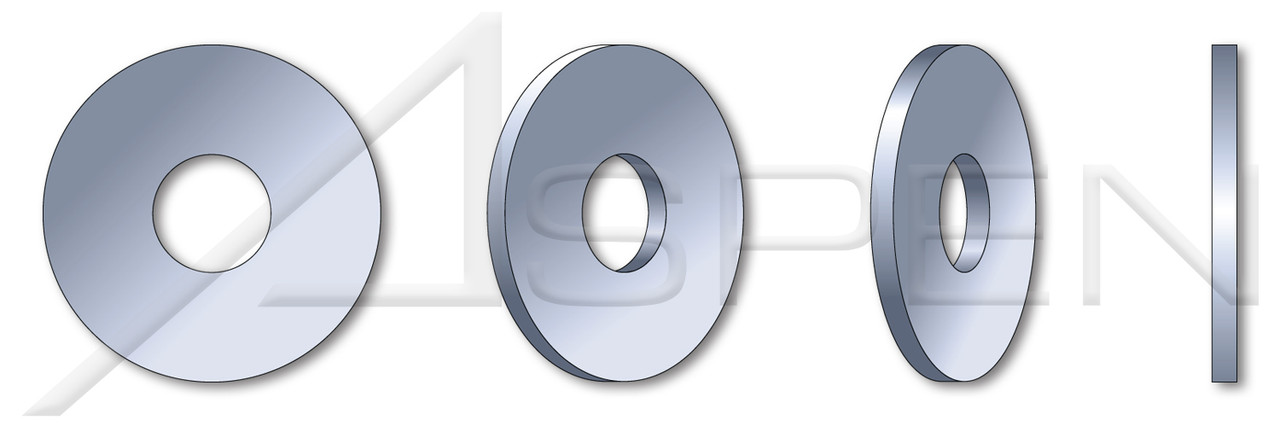

Product Description
- USS flat washers are also known as plain washers or plate washers.
- The nominal diameter is the bolt size to use for this flat washer.
Approximate washer piece count per 100 LBS: 120 pieces
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 2-1/4"
- Diameter (Dimension): 2.25"
- Inside Diameter (Nominal): 2-3/8"
- Inside Diameter (Minimum): 2.365"
- Inside Diameter (Maximum): 2.42"
- Outside Diameter (Nominal): 4-3/4"
- Outside Diameter (Minimum): 4.74"
- Outside Diameter (Maximum): 4.795"
- Thickness (Nominal): 7/32"
- Thickness (Minimum): 0.193"
- Thickness (Maximum): 0.248"
- Category: Standard Flat Washers
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: USS Flat Washer Dimensions
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.21.1-2009
Product Videos
Custom Field
Brand Aspen Fasteners
Category Standard Flat Washers
Coating Zinc Plated
Coating Color Clear
Diameter (Dimension) 2.25"
Diameter (Nominal) 2-1/4"
Form and Design USS Flat Washer Dimensions
Inside Diameter (Maximum) 2.42"
Inside Diameter (Minimum) 2.365"
Inside Diameter (Nominal) 2-3/8"
Material Steel
Order Flat Washers
Origin Origin Undefined
Outside Diameter (Maximum) 4.795"
Outside Diameter (Minimum) 4.74"
Outside Diameter (Nominal) 4-3/4"
POS WA029-214-000050
Product Class Washers
Standards and Specifications ASME B18.21.1-2009
System of Measurement Inch
Thickness (Maximum) 0.248"
Thickness (Minimum) 0.193"
Thickness (Nominal) 7/32"
