Product Description

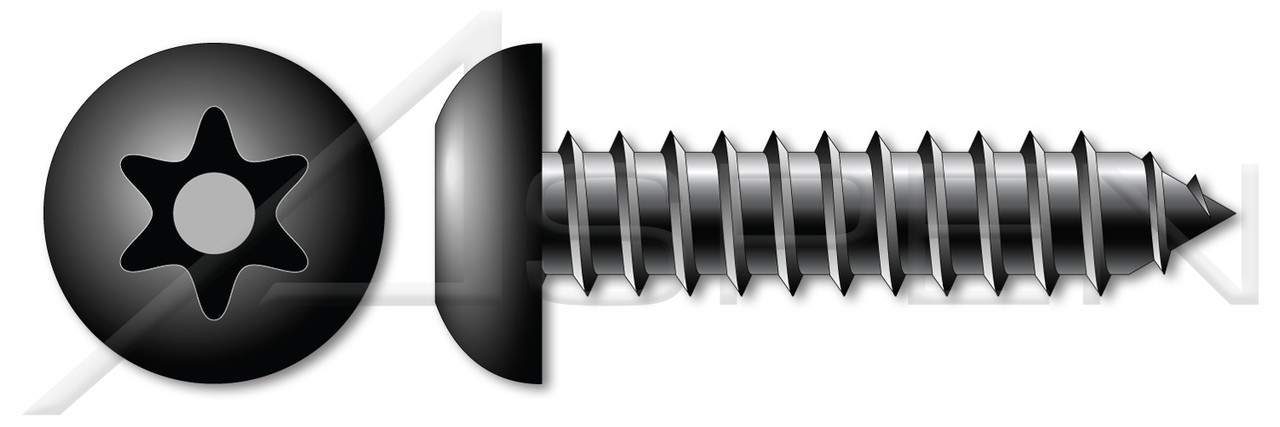

- Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
- Type "AB" sheet metal tapping screws feature a sharp point and fine threading.
- Button head screws have a wider bearing surface and maintain a low head profile.
This item includes a high quality screwdriver insert bit matched for these tamper resistant screws.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #14
- Diameter (Dimension): 0.25"
- Length (Nominal): 1-1/4"
- Drive Recess Size: T27
- Head Diameter: 0.437"
- Head Height, Overall: 0.132"
- Category: Self-Tapping Sheet Metal Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: Type "AB"
- Head Style: Button Head
- Drive Style: Tamper-Resistant 6Lobe Pin Drive
- Drive Detail: Torx® Brand
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Processes: Case Hardened
- Coating: Oxidized
- Coating Color: Black
- Origin: Made in U.S.A.
Product Videos
Custom Field
Brand Aspen Fasteners
Length (Nominal) 1-1/4"
Category Self-Tapping Sheet Metal Screws
Diameter (Nominal) #14
Order Thread Cutting Fasteners
Form and Design Type "AB"
Drive Detail Torx(r) Brand
Drive Recess Size T27
Material Processes Case Hardened
Head Height, Overall 0.132"
Coating Color Black
Material Steel
Drive Style Tamper-Resistant 6Lobe Pin Drive
Head Style Button Head
POS TR004-14X11427-00100,TR004-14X11427-01000,TR004-14X11427-00200,TR004-14X11427-02500
Origin Made in U.S.A.
System of Measurement Inch
Thread Length Full Thread
Coating Oxidized
Product Class Externally Threaded Fasteners
Diameter (Dimension) 0.25"
Thread Direction Right-Hand Thread
Head Diameter 0.437"
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/TR004-14X11427
