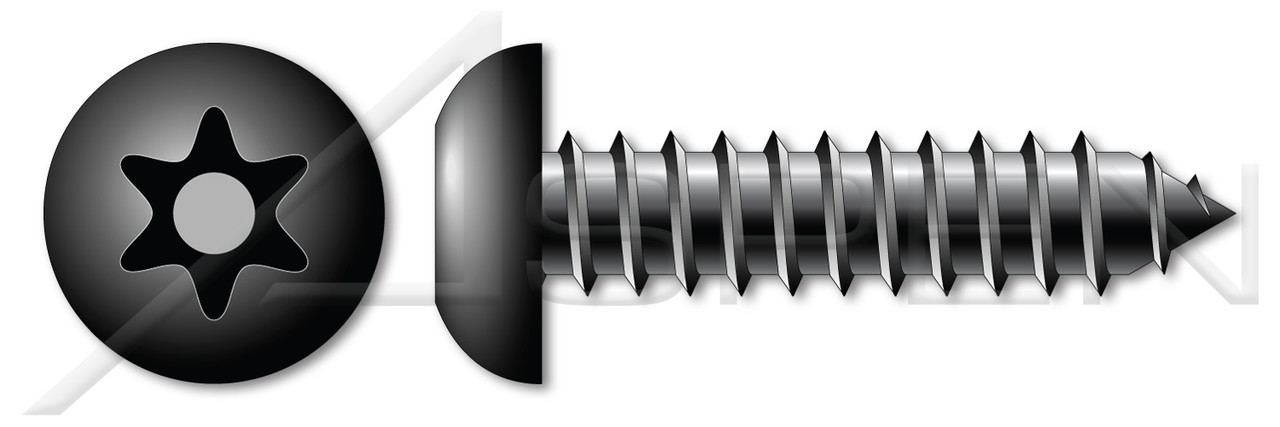

Product Description
- Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
- Type "AB" sheet metal tapping screws feature a sharp point and fine threading.
- Button head screws have a wider bearing surface and maintain a low head profile.
This item includes a high quality screwdriver insert bit matched for these tamper resistant screws.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #14
- Diameter (Dimension): 0.25"
- Length (Nominal): 1-1/2"
- Drive Recess Size: T27
- Head Diameter: 0.437"
- Head Height, Overall: 0.132"
- Category: Self-Tapping Sheet Metal Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: Type "AB"
- Head Style: Button Head
- Drive Style: Tamper-Resistant 6Lobe Pin Drive
- Drive Detail: Torx® Brand
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Processes: Case Hardened
- Coating: Oxidized
- Coating Color: Black
- Origin: Made in U.S.A.
Product Videos
Custom Field
Brand Aspen Fasteners
Drive Style Tamper-Resistant 6Lobe Pin Drive
POS TR004-14X11227-00100,TR004-14X11227-02500,TR004-14X11227-01000,TR004-14X11227-00200
Head Style Button Head
Material Steel
Material Processes Case Hardened
Length (Nominal) 1-1/2"
System of Measurement Inch
Coating Color Black
Product Class Externally Threaded Fasteners
Diameter (Nominal) #14
Thread Length Full Thread
Diameter (Dimension) 0.25"
Head Height, Overall 0.132"
Order Thread Cutting Fasteners
Drive Detail Torx(r) Brand
Thread Direction Right-Hand Thread
Origin Made in U.S.A.
Head Diameter 0.437"
Coating Oxidized
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/TR004-14X11227
Category Self-Tapping Sheet Metal Screws
Drive Recess Size T27
Form and Design Type "AB"
