Product Description
- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
- Diameter (Nominal): #12
- Diameter (Dimension): 0.2188"
- Thread Pitch: 24
- Length (Nominal): 3/4"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Drilling Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Hex Indented Washer Head
- Drive Style: External Hex Drive
- Threading: Machine Screw Threading
- Thread Direction: Right-Hand Thread
- Point: #4 Self-Drilling Point
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated and Baked
- Coating Color: Clear
- Hardness Rating: Rockwell C50-C56 / Core=C32-C40
- Standards and Specifications: ASME B18.6.3 and SAE J78

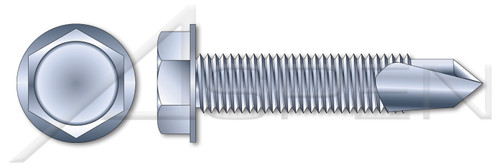

- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Drive Style External Hex Drive
Coating Process Zinc Plated and Baked, Clear
Category Self-Drilling Screws
Length 3/4"
System of Measurement US Units
Material Steel
Diameter/Pitch #12-24
Standards and Specifications ASME B18.6.3 and SAE J78
Head Style Hex Indented Washer Head
