Product Description

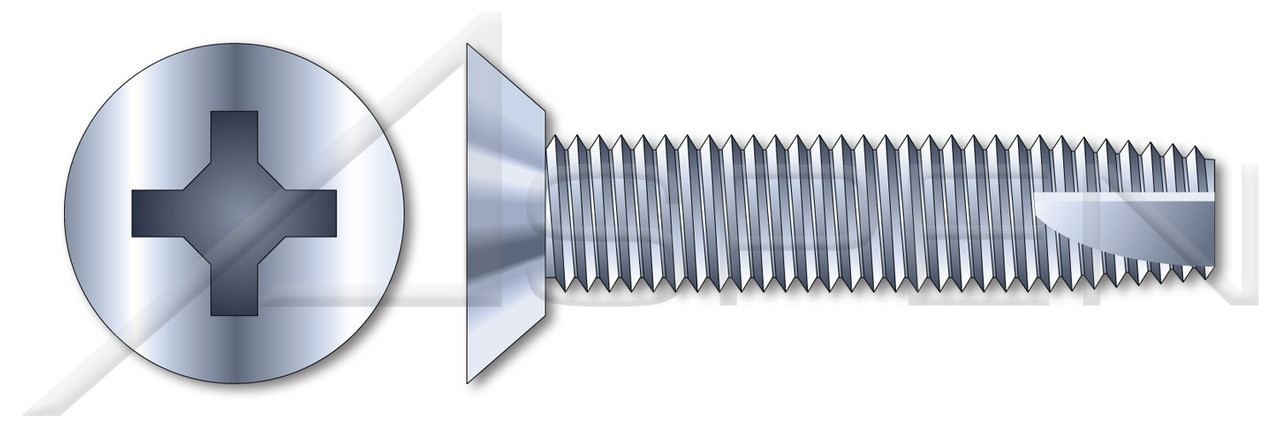

- Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
- Type 23 point screws provides maximum thread cutting area and exceptional chip clearing.
- Diameter (Nominal): #12
- Thread Pitch: 24
- Length (Nominal): 1"
- Category: Thread Cutting Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Undercut Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Type "23"
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated and Baked
- Coating Color: Clear
- Hardness Rating: Rockwell C45 min. / Core=C28-C38
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J933
Product Videos
Custom Field
Brand Aspen Fasteners
Category Thread Cutting Screws
Coating Zinc Plated and Baked
Coating Color Clear
Diameter (Nominal) #12
Drive Detail Phillips Type H
Drive Style Cruciform Recess Drive
Hardness Rating Rockwell C45 min. / Core=C28-C38
Head Style Flat Countersunk Undercut Head
Head Style Detail 82 Degree Countersink
Length (Nominal) 1"
Material Steel
Material Processes Case Hardened
Order Thread Cutting Fasteners
Origin Origin Undefined
POS SC256-1224X1-003000
Point Type "23"
Product Class Externally Threaded Fasteners
Standards and Specifications ASME B18.6.3 and SAE J933
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Pitch 24
