Product Description

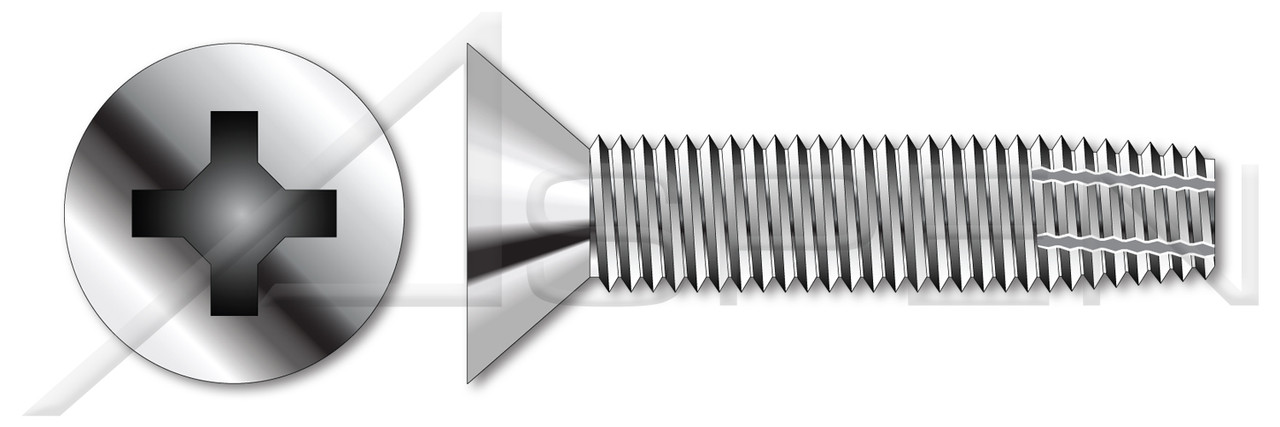

- Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
- Type F point screws have a machine screw thread and a blunt tapered point.
- Ideal for use with heavy gauge sheet metal, zinc, cast iron and lead die castings.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #12
- Thread Pitch: 24
- Length (Nominal): 1/2"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Thread Cutting Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Flat Countersunk Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Type "F"
- Material: Stainless Steel
- Material Grade: AISI 410 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: ASME B18.6.3
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Length 1/2"
Coating Process Uncoated
Drive Style Cruciform Recess Drive
Head Style Flat Countersunk Head
Category Thread Cutting Screws
Standards and Specifications ASME B18.6.3
System of Measurement US Units
Material AISI 410 Stainless Steel
Diameter/Pitch #12-24
