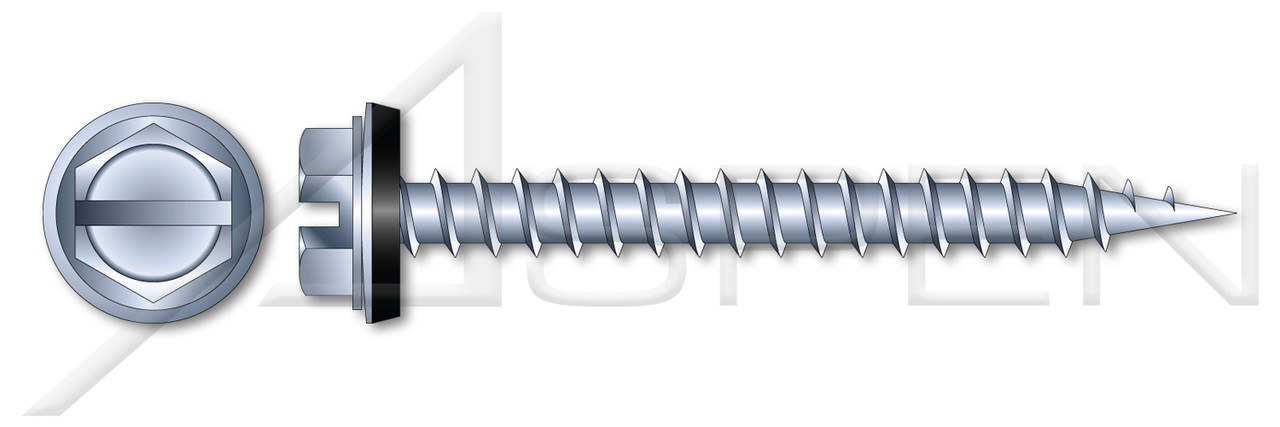

Product Description
- Features an extra-sharp point that allows for easier penetration of sheet metal.
- Also known as needlepoint, speed, saber or ZIP screws.
- Bonded neoprene sealing washer creates a leakproof seal.
- Diameter (Nominal): #10
- Thread Pitch: 12
- Diameter (Dimension): 0.194"
- Length (Nominal): 1-1/2"
- Thread Length (Nominal): 1-1/2"
- Across Flats (Basic): 1/4"
- Head Height, Overall: 0.11"
- Flange Diameter: 0.414"
- Flange Thickness: 0.031"
- Category: Self-Piercing Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Indented Washer Head
- Head Style Detail: with Bonded Sealing Washer
- Drive Style: Hex Slotted Drive
- Threading: Double-Lead Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Needle Point
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated
- Coating Color: Clear
- Hardness Rating: Rockwell C45 min. / Core=C28-C38
- Origin: Origin Undefined
Product Videos
Custom Field
Across Flats (Basic) 1/4"
Brand Aspen Fasteners
Category Self-Piercing Screws
Coating Zinc Plated
Coating Color Clear
Diameter (Dimension) 0.194"
Diameter (Nominal) #10
Drive Style Hex Slotted Drive
Flange Diameter 0.414"
Flange Thickness 0.031"
Hardness Rating Rockwell C45 min. / Core=C28-C38
Head Height, Overall 0.11"
Head Style Hex Indented Washer Head
Head Style Detail with Bonded Sealing Washer
Length (Nominal) 1-1/2"
Material Steel
Material Processes Case Hardened
Order Thread Cutting Fasteners
Origin Origin Undefined
POS SC213-10X112X12X14-004000,SC213-10X112-002000,SC213-10X112-001000
Point Needle Point
Product Class Externally Threaded Fasteners
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Length (Nominal) 1-1/2"
Thread Pitch 12
Threading Double-Lead Thread
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/SC213-10X112
