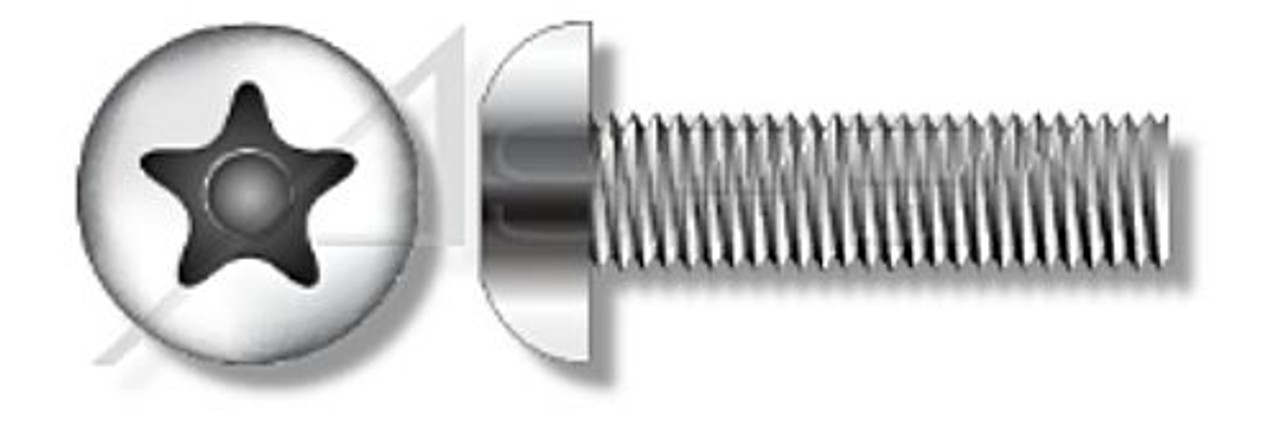

Product Description
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #10
- Thread Pitch: 24
- Diameter (Dimension): 0.19"
- Length (Nominal): 1/2"
- Recess Size: 25IP
- Head Diameter: 0.361"
- Head Height, Overall: 0.101"
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Machine Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Button Head
- Drive Style: Tamper-Resistant 5Lobe Pin Drive
- Drive Detail: Torx Plus® Brand
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: AISI 304 Stainless Steel (18-8)
- Coating: Uncoated
- Origin: Made in U.S.A.
- Torx® and Torx Plus® are trademarks of Acument Global Technologies Inc. (Acument). Unless specified otherwise, Acument has not licensed the use of these trademarks to Aspen Fasteners Inc.
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Coating Process Uncoated
Head Style Button Head
Diameter/Pitch #10-24
Category Machine Screws
Length 1/2"
Drive Style Tamper-Resistant 5Lobe Pin Drive
Material AISI 304 Stainless Steel (18-8)
System of Measurement US Units
