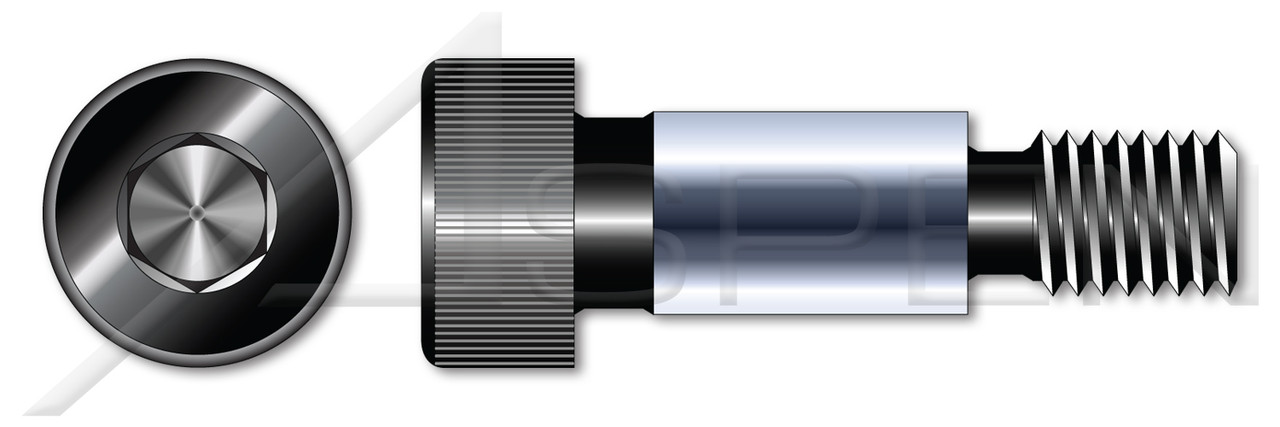

Product Description
- Shoulder screws are also known as shoulder bolts or stripper bolts.
- An internal hex socket drive is also known as an Allen drive.
- The shoulder acts as a shaft or dowel for rotating items such as bearings or bushings.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
- Diameter (Nominal): 3/4"
- Thread Pitch: 10
- Diameter (Dimension): 0.75"
- Length (Nominal): 2.25"
- Thread Length (Minimum): 1"
- Recess Size: 1/2"
- Key Engagement (Minimum): 0.375"
- Head Diameter: 1.312"
- Head Height, Overall: 0.625"
- Shoulder Diameter: 1"
- Shoulder Diameter (Minimum): 0.996"
- Shoulder Diameter (Maximum): 0.998"
- Shoulder Length: 1-1/4"
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Shoulder Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Pitch: UNRC Coarse Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Alloy Steel
- Coating: Uncoated
- Standards and Specifications: ANSI B18.3
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
System of Measurement US Units
Coating Process Uncoated
Head Style Cylindrical Head
Diameter/Pitch 3/4"-10
Category Shoulder Screws
Length 2.25"
Standards and Specifications ANSI B18.3
Drive Style Hex Socket Drive
Material Alloy Steel
