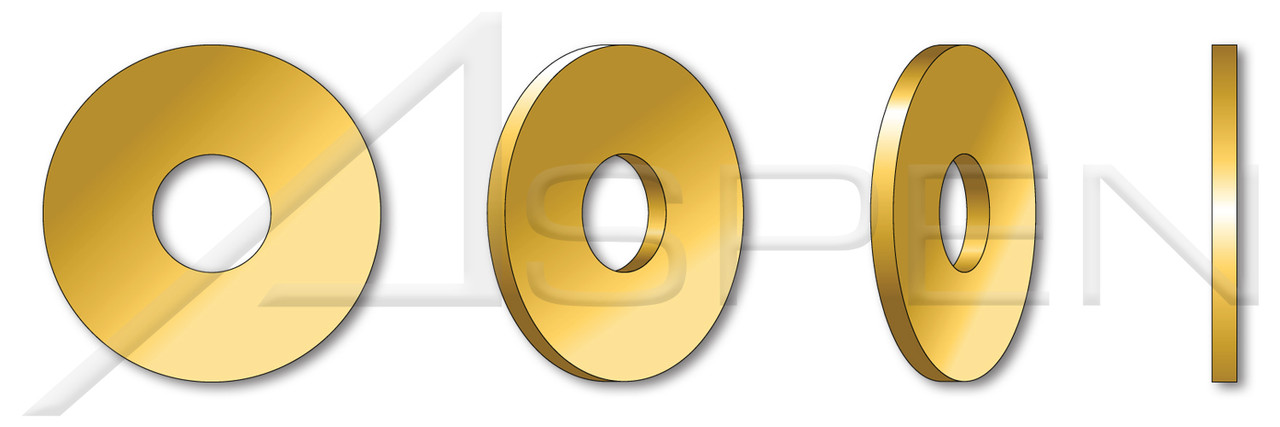

Product Description
- USS flat washers are also known as plain washers or plate washers.
- Extra thick washers can be up to 50% thinker than standard USS flat washers.
- The nominal diameter is the bolt size to use for this flat washer.
- Diameter (Nominal): 1"
- Diameter (Dimension): 1"
- Inside Diameter (Nominal): 1-1/16"
- Inside Diameter (Minimum): 1.055"
- Inside Diameter (Maximum): 1.092"
- Outside Diameter (Nominal): 2-1/2"
- Outside Diameter (Minimum): 2.493"
- Outside Diameter (Maximum): 2.53"
- Thickness (Nominal): 11/64"
- Thickness (Minimum): 0.136"
- Thickness (Maximum): 0.16"
- Category: Standard Flat Washers
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: USS Flat Washer Dimensions, Extra Thick
- Material: Steel
- Material Processes: Through-Hardened
- Coating: Zinc Plated
- Coating Color: Yellow
- Hardness Rating: Rockwell C38-C45
- Origin: Made in U.S.A.
- Standards and Specifications: ASME B18.21.1-2009
Product Videos
Custom Field
Brand Aspen Fasteners
Category Standard Flat Washers
Coating Zinc Plated
Coating Color Yellow
Diameter (Dimension) 1"
Diameter (Nominal) 1"
Form and Design USS Flat Washer Dimensions, Extra Thick
Hardness Rating Rockwell C38-C45
Inside Diameter (Maximum) 1.092"
Inside Diameter (Minimum) 1.055"
Inside Diameter (Nominal) 1-1/16"
Material Steel
Material Processes Through-Hardened
Order Flat Washers
Origin Made in U.S.A.
Outside Diameter (Maximum) 2.53"
Outside Diameter (Minimum) 2.493"
Outside Diameter (Nominal) 2-1/2"
POS WA027-1-000300
Product Class Washers
Standards and Specifications ASME B18.21.1-2009
System of Measurement Inch
Thickness (Maximum) 0.16"
Thickness (Minimum) 0.136"
Thickness (Nominal) 11/64"
