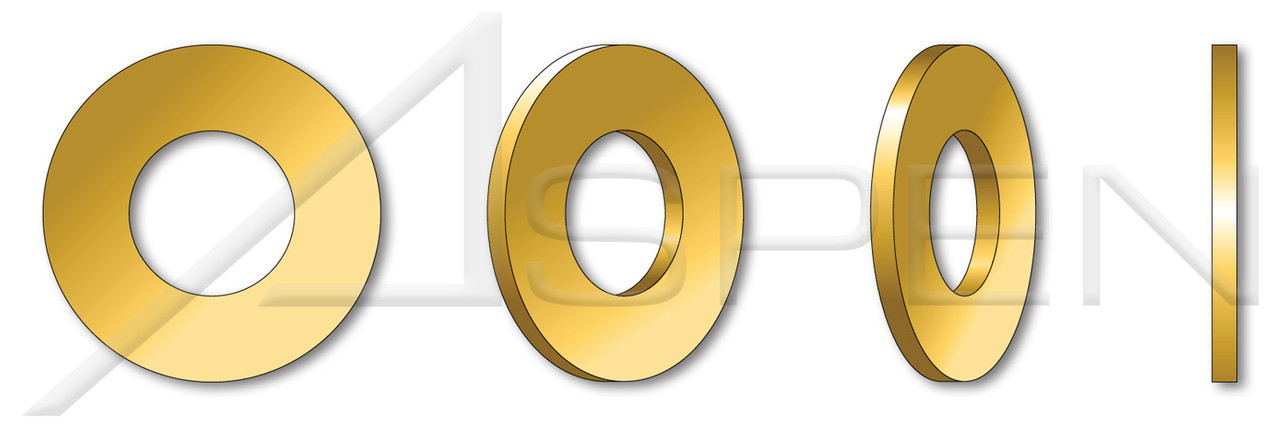

Product Description
- SAE flat washer dimensions were developed by the Society of Automotive Engineers.
- The nominal diameter is the bolt size to use for this flat washer.
- Diameter (Nominal): 1"
- Inside Diameter (Nominal): 1-1/16"
- Inside Diameter (Minimum): 1.055"
- Inside Diameter (Maximum): 1.092"
- Outside Diameter (Nominal): 2"
- Outside Diameter (Minimum): 1.993"
- Outside Diameter (Maximum): 2.03"
- Thickness (Nominal): 5/32"
- Thickness (Minimum): 0.136"
- Thickness (Maximum): 0.16"
- Category: Standard Flat Washers
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: SAE Flat Washer Dimensions
- Material: Steel
- Material Processes: Through-Hardened
- Coating: Mechanically Zinc Plated and Baked
- Coating Color: Yellow
- Hardness Rating: Rockwell C38-C45
- Origin: Made in U.S.A.
- Standards and Specifications: ASME B18.21.1-2009
Product Videos
Custom Field
Brand Aspen Fasteners
Category Standard Flat Washers
Coating Mechanically Zinc Plated and Baked
Coating Color Yellow
Diameter (Nominal) 1"
Form and Design SAE Flat Washer Dimensions
Hardness Rating Rockwell C38-C45
Inside Diameter (Maximum) 1.092"
Inside Diameter (Minimum) 1.055"
Inside Diameter (Nominal) 1-1/16"
Material Steel
Material Processes Through-Hardened
Order Flat Washers
Origin Made in U.S.A.
Outside Diameter (Maximum) 2.03"
Outside Diameter (Minimum) 1.993"
Outside Diameter (Nominal) 2"
POS WA018-1-000500
Product Class Washers
Standards and Specifications ASME B18.21.1-2009
System of Measurement Inch
Thickness (Maximum) 0.16"
Thickness (Minimum) 0.136"
Thickness (Nominal) 5/32"
