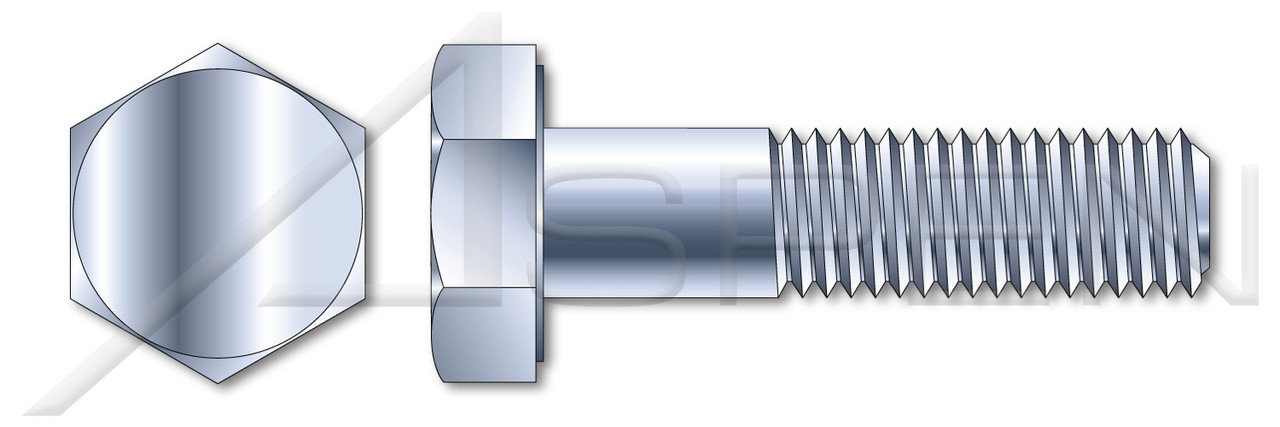

Product Description
- Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
- Grade 2 steel is a standard "industrial spec" low carbon grade of steel.
- The washer face under the head provides a precision bearing surface.
- Grade 2 steel fasteners have a minimum tensile strength of 60,000 pounds per square inch.
- The chamfered point improves engagement with a nut or pre-tapped hole.
- Diameter (Nominal): 1"
- Thread Pitch: 8
- Diameter (Dimension): 1"
- Diameter (Minimum): 0.990"
- Diameter (Maximum): 1.000"
- Length (Nominal): 11"
- Thread Length (Nominal): 2.5"
- Across Flats (Basic): 1-1/2"
- Across Flats (Minimum): 1.469"
- Across Flats (Maximum): 1.500"
- Head Height, Overall: 39/64"
- Head Height, Overall (Minimum): 0.591"
- Head Height, Overall (Maximum): 0.627"
- Category: Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Head Style Detail: Washer Face
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Point: Chamfered Point
- Material: Steel
- Material Grade: Grade 2
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.1 and SAE J429
Product Videos
Custom Field
Product Class Externally Threaded Fasteners
Coating Zinc Plated
Diameter (Minimum) 0.990"
Thread Length (Nominal) 2.5"
Material Grade Grade 2
Head Style Hex Head
Drive Style External Hex Drive
Point Chamfered Point
Material Steel
Origin Origin Undefined
Thread Direction Right-Hand Thread
System of Measurement Inch
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/BO024-18X11
Diameter (Maximum) 1.000"
Order Machine Thread Fasteners
Across Flats (Minimum) 1.469"
POS BO024-18X11-000010
Coating Color Clear
Brand Aspen Fasteners
Head Height, Overall (Maximum) 0.627"
Head Style Detail Washer Face
Length (Nominal) 11"
Category Cap Screws
Head Height, Overall 39/64"
Across Flats (Maximum) 1.500"
Standards and Specifications ASME B18.2.1 and SAE J429
Diameter (Dimension) 1"
Head Height, Overall (Minimum) 0.591"
Across Flats (Basic) 1-1/2"
Thread Pitch 8
Diameter (Nominal) 1"
