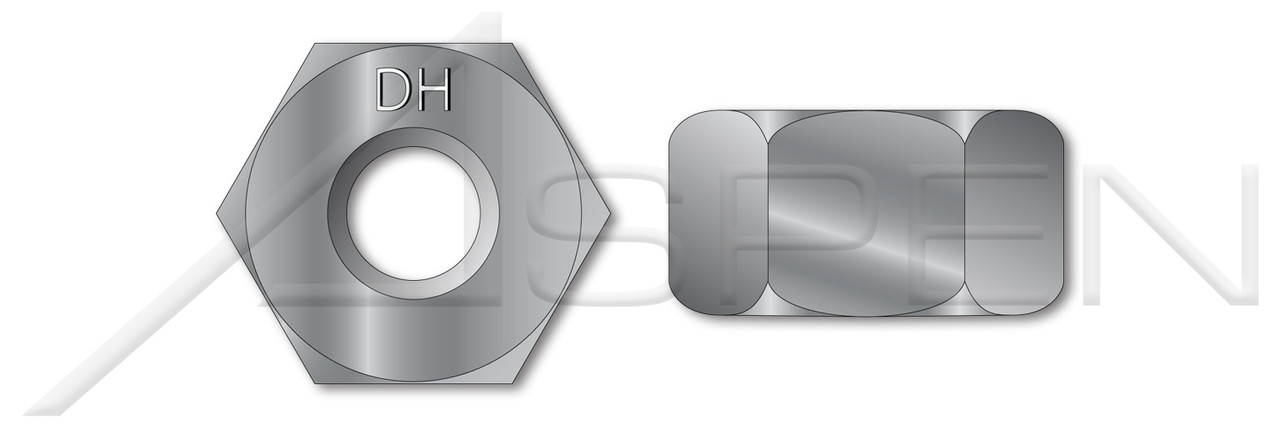

Product Description
- Heavy hex nuts are thicker and have a larger across flats as compared to regular nuts.
- Diameter (Nominal): 1"
- Thread Pitch: 8
- Diameter (Dimension): 1"
- Thread Length (Nominal): 0.984"
- Across Flats (Basic): 1-5/8"
- Across Flats (Minimum): 1.575"
- Across Flats (Maximum): 1.625"
- Height (Basic): 63/64"
- Height (Minimum): 0.956"
- Height (Maximum): 1.012"
- Category: Hex Heavy Nuts Structural
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Pitch: UNC Coarse Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: ASTM A563-DH, Medium Carbon Steel
- Material Processes: Heat Treated
- Coating: Hot Dip Galvanized
- Coating Color: Clear
- Origin: Made in U.S.A.
- Standards and Specifications: ASME B18.2.2 and ASTM A563
Product Videos
Custom Field
Across Flats (Basic) 1-5/8"
Across Flats (Maximum) 1.625"
Across Flats (Minimum) 1.575"
Brand Aspen Fasteners
Category Hex Heavy Nuts Structural
Coating Hot Dip Galvanized
Coating Color Clear
Diameter (Dimension) 1"
Diameter (Nominal) 1"
Drive Style External Hex Drive
Height (Basic) 63/64"
Height (Maximum) 1.012"
Height (Minimum) 0.956"
Material Steel
Material Grade ASTM A563-DH, Medium Carbon Steel
Material Processes Heat Treated
Order Nuts
Origin Made in U.S.A.
POS NU100-18-000075
Pitch UNC Coarse Thread
Product Class Internally Threaded Fasteners
Standards and Specifications ASME B18.2.2 and ASTM A563
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Length (Nominal) 0.984"
Thread Pitch 8
