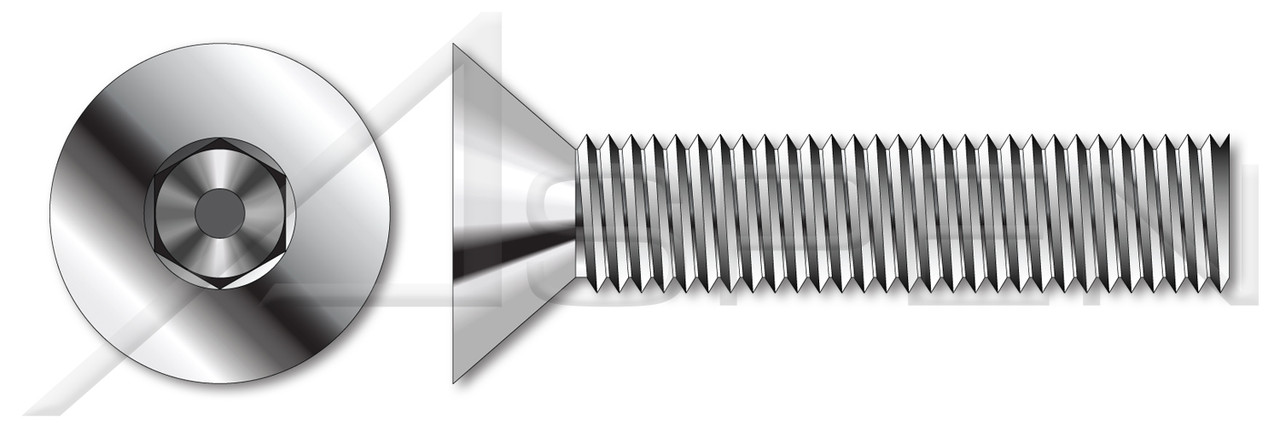

Product Description
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- An internal hex socket drive is also known as an Allen drive.
- Type 316 stainless steel is considered "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): 1/4"
- Thread Pitch: 20
- Length (Nominal): 5/8"
- Category: Socket Head Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Hex Socket Drive
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: AISI 316 Stainless Steel
- Coating: Uncoated
Product Videos
Custom Field
Diameter (Nominal) 1/4"
Material Stainless Steel
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/ST307-1420X58
Material Grade AISI 316 Stainless Steel
Brand Aspen Fasteners
Thread Pitch 20
Thread Direction Right-Hand Thread
Head Style Detail 82 Degree Countersink
Order Machine Thread Fasteners
Length (Nominal) 5/8"
System of Measurement Inch
Product Class Externally Threaded Fasteners
POS ST307-1420X58-000050,ST307-1420X58-000100,ST307-1420X58-000125
Drive Style Hex Socket Drive
Coating Uncoated
Category Socket Head Cap Screws
Head Style Flat Countersunk Head
