Product Description

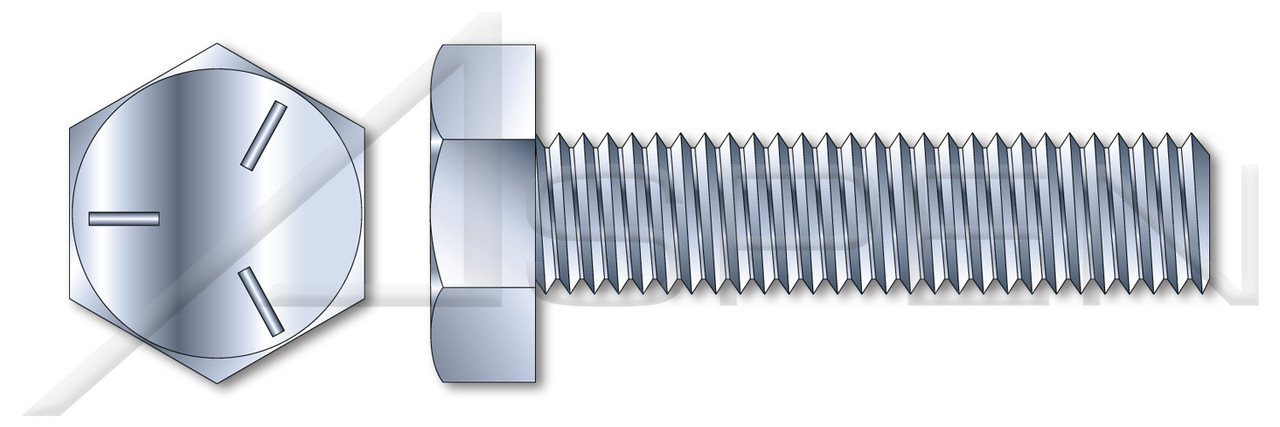

- Tap bolts are fully threaded hex bolts.
- The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
- Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
- Diameter (Nominal): 1/4"
- Thread Pitch: 20
- Diameter (Dimension): 0.25"
- Length (Nominal): 5-1/2"
- Thread Length (Nominal): 5.5"
- Across Flats (Basic): 7/16"
- Head Height, Overall: 0.172"
- Category: Tap Bolts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Grade 5
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.1 and SAE J429
Product Videos
Custom Field
Length (Nominal) 5-1/2"
Drive Style External Hex Drive
POS BO041-1420X512-000400
System of Measurement Inch
Coating Zinc Plated
Diameter (Nominal) 1/4"
Thread Length (Nominal) 5.5"
Brand Aspen Fasteners
Standards and Specifications ASME B18.2.1 and SAE J429
Across Flats (Basic) 7/16"
Coating Color Clear
Product Class Externally Threaded Fasteners
Thread Pitch 20
Material Grade Grade 5
Thread Length Full Thread
Category Tap Bolts
Origin Origin Undefined
Order Machine Thread Fasteners
Material Steel
Head Style Hex Head
Diameter (Dimension) 0.25"
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/BO041-1420X512
Head Height, Overall 0.172"
Thread Direction Right-Hand Thread
