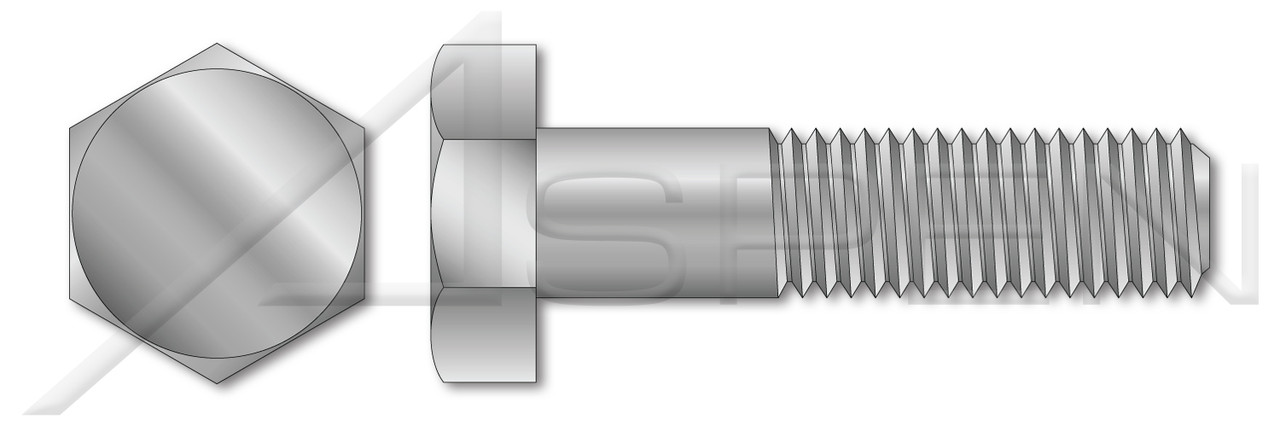

Product Description
- Machine bolts are most commonly used in construction applications.
- Machine bolts tolerances are typically less precise than those of cap screws.
- Unlike cap screws, does not have a washer face or a machined point.
- Diameter (Nominal): 1/4"
- Thread Pitch: 20
- Diameter (Dimension): 0.25"
- Length (Nominal): 3"
- Thread Length (Nominal): 0.75"
- Across Flats (Basic): 7/16"
- Head Height, Overall: 0.172"
- Category: Machine Bolts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Low Carbon Steel
- Coating: Hot Dip Galvanized
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.1
Product Videos
Custom Field
Order Machine Thread Fasteners
Head Style Hex Head
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/BO033-1420X3
Length (Nominal) 3"
Standards and Specifications ASME B18.2.1
Material Grade Low Carbon Steel
Material Steel
Across Flats (Basic) 7/16"
Thread Pitch 20
Head Height, Overall 0.172"
Diameter (Dimension) 0.25"
Diameter (Nominal) 1/4"
System of Measurement Inch
Drive Style External Hex Drive
Origin Origin Undefined
Thread Length (Nominal) 0.75"
Brand Aspen Fasteners
Product Class Externally Threaded Fasteners
Category Machine Bolts
Thread Direction Right-Hand Thread
Coating Color Clear
Coating Hot Dip Galvanized
