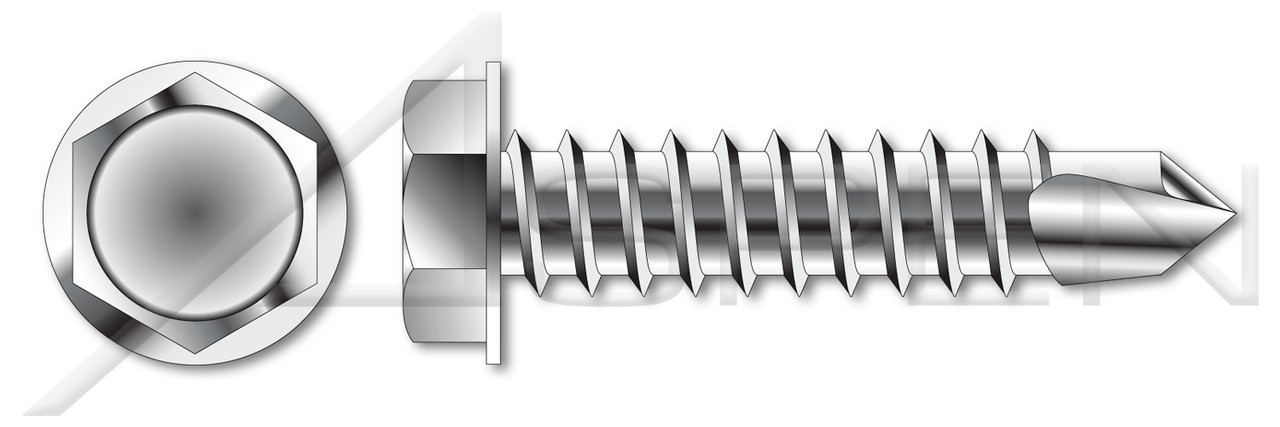

Product Description
- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
- Diameter (Nominal): 1/4"
- Thread Pitch: 20
- Diameter (Dimension): 0.25"
- Length (Nominal): 3"
- Thread Length (Minimum): 2"
- Drill Size: #5
- Across Flats (Basic): 3/8"
- Head Height, Overall: 0.24"
- Flange Diameter: 0.625"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Drilling Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Hex Indented Washer Head
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Steel
- Material Grade: AISI-SAE C1022 Steel
- Material Processes: Case Hardened
- Coating: Zinc Base and Aluminum Top Coat
- Coating Color: High Luster Silver
- Coating Standard: 1,000 Hour Salt Spray Rated
- Origin: Made in U.S.A.
- Standards and Specifications: SAE J78, IFI-113, ASTM C1513, DFARS
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Coating Process Zinc Base and Aluminum Top Coat, High Luster Silver
Length 3"
Drive Style External Hex Drive
System of Measurement US Units
Category Self-Drilling Screws
Head Style Hex Indented Washer Head
Material AISI-SAE C1022 Steel
Standards and Specifications SAE J78, IFI-113, ASTM C1513, DFARS
Diameter/Pitch 1/4"-20
