Product Description

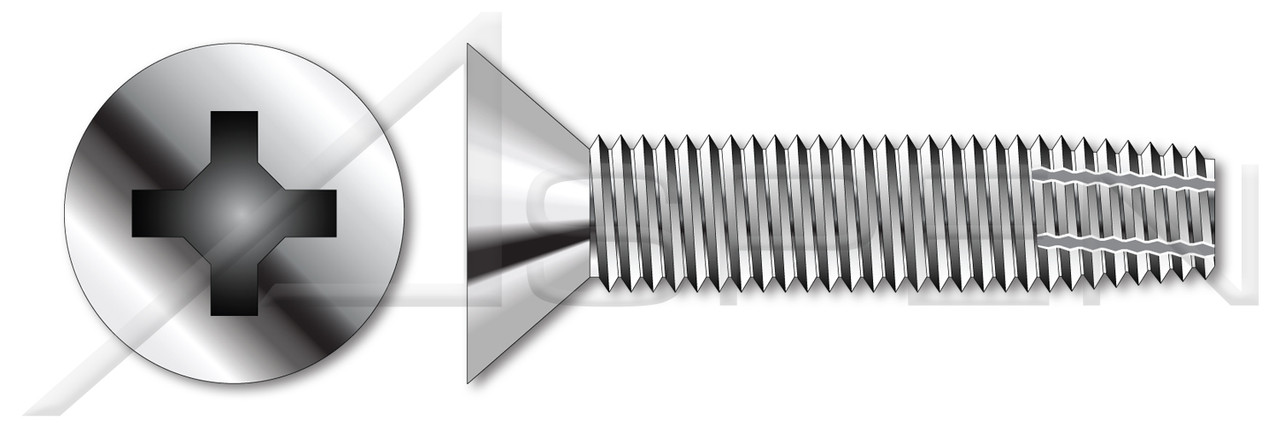

- Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
- Type F point screws have a machine screw thread and a blunt tapered point.
- Ideal for use with heavy gauge sheet metal, zinc, cast iron and lead die castings.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): 1/4"
- Thread Pitch: 20
- Diameter (Dimension): 0.25"
- Length (Nominal): 2"
- Category: Thread Cutting Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Type "F"
- Material: Stainless Steel
- Material Grade: AISI 410 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3
Product Videos
Custom Field
Brand Aspen Fasteners
Category Thread Cutting Screws
Coating Uncoated
Diameter (Dimension) 0.25"
Diameter (Nominal) 1/4"
Drive Detail Phillips Type H
Drive Style Cruciform Recess Drive
Head Style Flat Countersunk Head
Head Style Detail 82 Degree Countersink
Length (Nominal) 2"
Material Stainless Steel
Material Grade AISI 410 Stainless Steel
Order Thread Cutting Fasteners
Origin Origin Undefined
POS ST129-1420X2-001000
Point Type "F"
Product Class Externally Threaded Fasteners
Standards and Specifications ASME B18.6.3
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Pitch 20
