Product Description
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- An internal hex socket drive is also known as an Allen drive.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
- Mechanical zinc plating is also known as peen plating, mechanical deposition, or impact plating.
- Mechanical zinc is similar to zinc electroplating but eliminates the risk of hydrogen embrittlement.
- Diameter (Nominal): 1/4"
- Diameter (Dimension): 0.25"
- Thread Pitch: 20
- Length (Nominal): 1"
- Thread Length: 1"
- Recess Size: 3/16"
- Head Diameter: 0.375"
- Head Height: 0.25"
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Pitch: UNC Coarse Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Alloy Steel
- Material Processes: Heat Treated
- Coating: Mechanically Zinc Plated
- Coating Color: Clear
- Coating Standard: Type 2 Mechanical Zinc 0.0002" Cr+3 RoHS
- Standards and Specifications: ASTM B695-2000

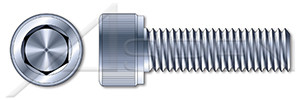

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
System of Measurement US Units
Standards and Specifications ASTM B695-2000
Material Alloy Steel
Length 1"
Head Style Cylindrical Head
Diameter/Pitch 1/4"-20
Drive Style Hex Socket Drive
Category Socket Head Cap Screws
Coating Process Mechanically Zinc Plated, Clear
