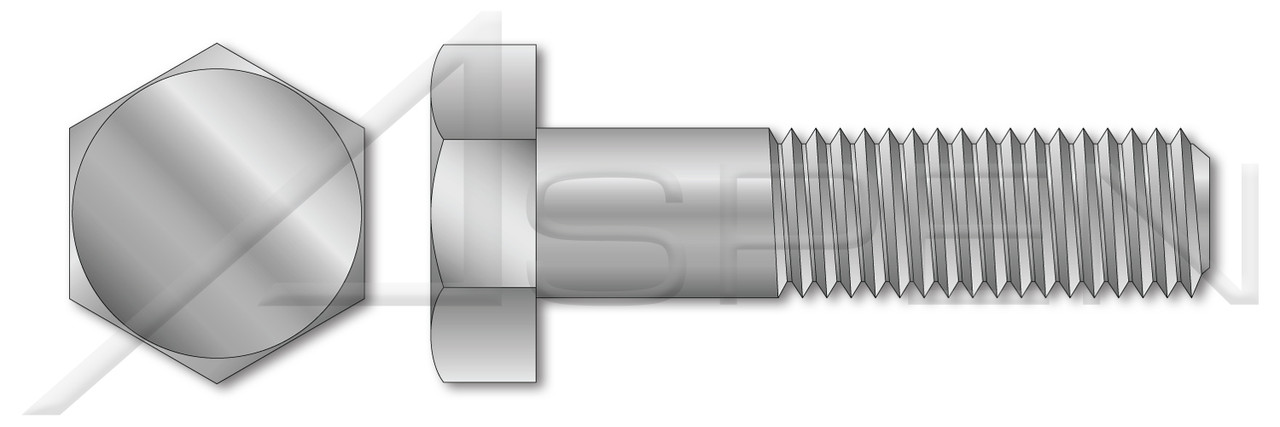

Product Description
- Machine bolts are most commonly used in construction applications.
- Machine bolts tolerances are typically less precise than those of cap screws.
- Unlike cap screws, does not have a washer face or a machined point.
- Diameter (Nominal): 1/4"
- Thread Pitch: 20
- Diameter (Dimension): 0.25"
- Length (Nominal): 1"
- Thread Length (Nominal): 0.75"
- Across Flats (Basic): 7/16"
- Head Height, Overall: 0.172"
- Category: Machine Bolts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Low Carbon Steel
- Coating: Hot Dip Galvanized
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.1
Product Videos
Custom Field
Diameter (Dimension) 0.25"
Origin Origin Undefined
POS BO033-1420X1-002200,BO033-1420X1-002500
Thread Direction Right-Hand Thread
Head Height, Overall 0.172"
Category Machine Bolts
Standards and Specifications ASME B18.2.1
Thread Pitch 20
Thread Length (Nominal) 0.75"
Drive Style External Hex Drive
System of Measurement Inch
Coating Hot Dip Galvanized
Head Style Hex Head
Coating Color Clear
Material Grade Low Carbon Steel
Length (Nominal) 1"
Across Flats (Basic) 7/16"
Order Machine Thread Fasteners
Material Steel
Diameter (Nominal) 1/4"
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/BO033-1420X1
Brand Aspen Fasteners
Product Class Externally Threaded Fasteners
