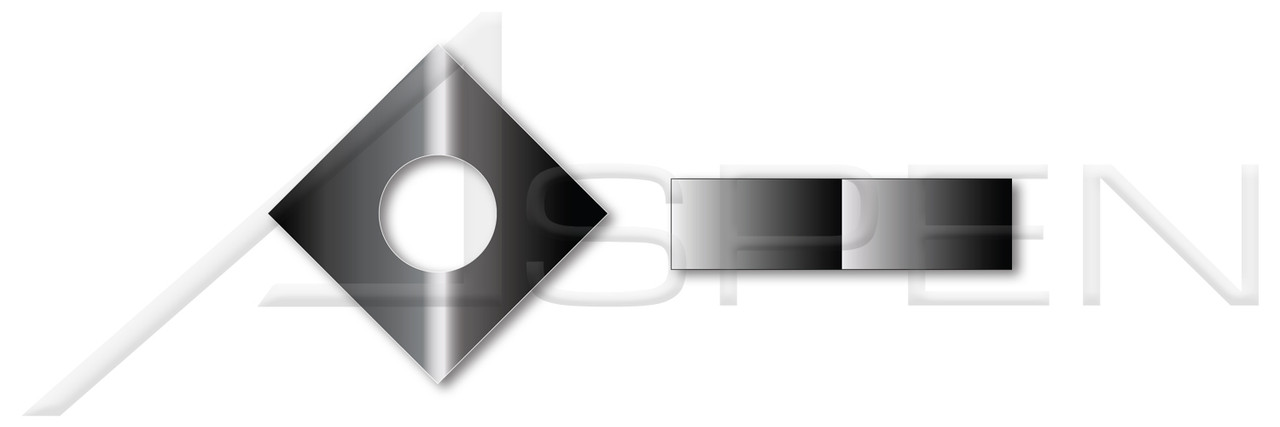

Product Description
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 1/4"
- Thread Pitch: 20
- Diameter (Dimension): 0.25"
- Thread Length (Nominal): 0.188"
- Across Flats (Basic): 7/16"
- Across Flats (Minimum): 0.423"
- Across Flats (Maximum): 0.438"
- Height (Basic): 3/16"
- Height (Minimum): 0.178"
- Height (Maximum): 0.193"
- Category: Square Machine Screw Nuts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: Not Chamfered
- Drive Style: External Square Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Oxidized
- Coating Color: Black
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3
Product Videos
Custom Field
Across Flats (Basic) 7/16"
Across Flats (Maximum) 0.438"
Across Flats (Minimum) 0.423"
Brand Aspen Fasteners
Category Square Machine Screw Nuts
Coating Oxidized
Coating Color Black
Diameter (Dimension) 0.25"
Diameter (Nominal) 1/4"
Drive Style External Square Drive
Form and Design Not Chamfered
Height (Basic) 3/16"
Height (Maximum) 0.193"
Height (Minimum) 0.178"
Material Steel
Order Nuts
Origin Origin Undefined
POS NU094-1420-003000
Product Class Internally Threaded Fasteners
Standards and Specifications ASME B18.6.3
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Length (Nominal) 0.188"
Thread Pitch 20
