Product Description

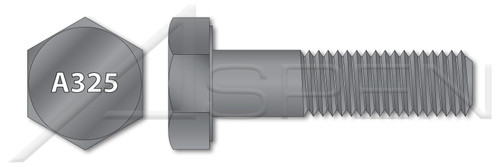

- Heavy hex structural bolts are designed to withstand the load of a steel-to-steel connection.
- Commonly used in structural steel joint in construction and building applications.
- The washer face under the head provides a precision bearing surface.
- The chamfered point improves engagement with a nut or pre-tapped hole.
- Diameter (Nominal): 1/2"
- Thread Pitch: 13
- Diameter (Dimension): 0.5"
- Diameter (Minimum): 0.482"
- Diameter (Maximum): 0.515"
- Length (Nominal): 4"
- Length (Minimum): 3.88"
- Length (Maximum): 4"
- Thread Length (Nominal): 1"
- Across Flats (Basic): 7/8"
- Across Flats (Minimum): 0.850"
- Across Flats (Maximum): 0.875"
- Head Height, Overall: 5/16"
- Head Height, Overall (Minimum): 0.302"
- Head Height, Overall (Maximum): 0.323"
- Category: Hex Bolts, Heavy Structural
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Head Style Detail: Washer Face
- Drive Style: External Hex Drive
- Pitch: Coarse Thread
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Point: Chamfered Point
- Material: Steel
- Material Grade: ASTM A325 Type 1
- Material Processes: Heat Treated
- Coating: Uncoated
- Hardness Rating: Rockwell C24-C35
- Origin: Made in U.S.A.
- Standards and Specifications: ASME B18.2.6
