Product Description

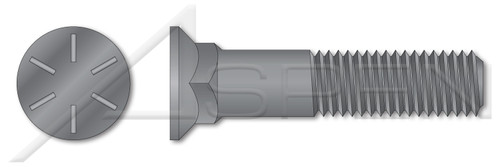

- Plow bolts are a specialized type of fastener used to hold parts of the plow together.
- The heads of grade 8 steel fasteners are typically marked with 6 raised radial lines.
- Grade 8 steel fasteners have a minimum tensile strength of 150,000 pounds per square inch.
- Diameter (Nominal): 1/2"
- Thread Pitch: 13
- Diameter (Dimension): 0.5"
- Length (Nominal): 3-1/2"
- Thread Length (Nominal): 1.25"
- Neck Height: 0.5"
- Head Diameter: 0.945"
- Head Height, Overall: 0.417"
- Feed Thickness: 0.042"
- Category: Plow Bolts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Flat Head
- Head Style Detail: #3 Head
- Pitch: UNC Coarse Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Grade 8
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.9 and SAE J429
Product Videos
Custom Field
Brand Aspen Fasteners
Thread Length (Nominal) 1.25"
Neck Height 0.5"
Material Grade Grade 8
Origin Origin Undefined
Head Style Detail #3 Head
Coating Uncoated
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/BO035-1213X312
Feed Thickness 0.042"
Length (Nominal) 3-1/2"
Product Class Externally Threaded Fasteners
Order Machine Thread Fasteners
Head Style Flat Head
POS BO035-1213X312-000150
Pitch UNC Coarse Thread
Diameter (Nominal) 1/2"
Diameter (Dimension) 0.5"
Material Steel
Thread Direction Right-Hand Thread
Category Plow Bolts
System of Measurement Inch
Thread Pitch 13
Head Diameter 0.945"
Head Height, Overall 0.417"
Standards and Specifications ASME B18.9 and SAE J429
