Product Description
- Flange on the nut acts like a washer to increase the bearing surface and distribute the load.
- Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
- Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): 1/2"
- Diameter (Dimension): 0.5"
- Thread Pitch: 13
- Thread Length: 0.554"
- Across Flats (Basic): 0.75"
- Height (Basic): 0.554"
- Flange Diameter: 1.07"
- Product Class: Internally Threaded Fasteners
- Order: Lock Nuts
- Category: Hex Nylon Insert Flange Stop Lock Nuts
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: AISI 304 Stainless Steel (18-8)
- Coating: Uncoated

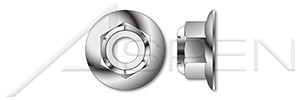

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Category Hex Nylon Insert Flange Stop Lock Nuts
System of Measurement US Units
Material AISI 304 Stainless Steel (18-8)
Coating Process Uncoated
Diameter/Pitch 1/2"-13
Drive Style External Hex Drive
