Product Description

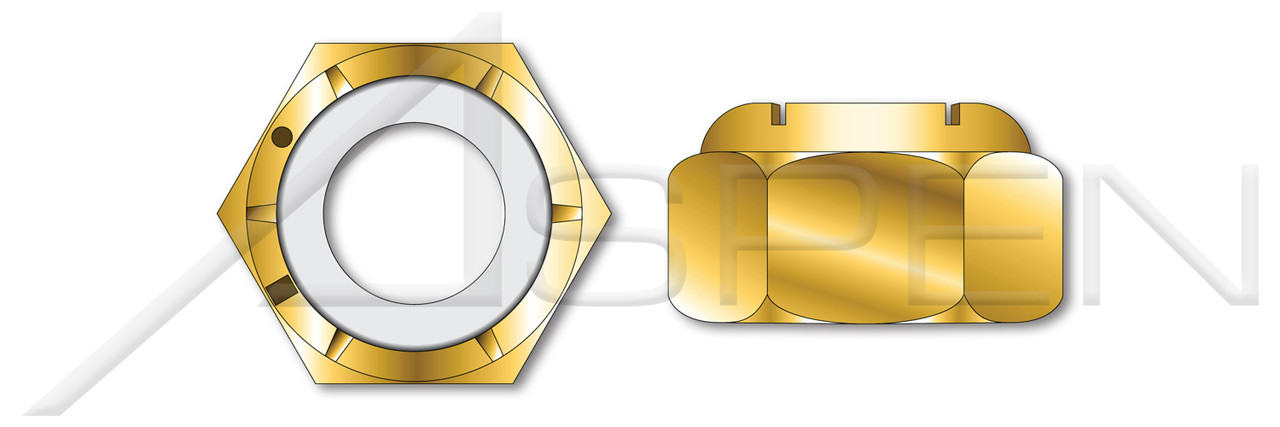

- Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
- The nylon insert collar retains its locking ability up to 250 degrees F (121 degrees C).
- The heads of grade 8 steel fasteners are typically marked with 6 raised radial lines.
- Grade 8 steel fasteners have a minimum tensile strength of 150,000 pounds per square inch.
- Diameter (Nominal): 1-1/4"
- Thread Pitch: 7
- Diameter (Dimension): 1.25"
- Thread Length (Nominal): 1.125"
- Across Flats (Basic): 1-13/16"
- Across Flats (Minimum): 1.801"
- Across Flats (Maximum): 1.814"
- Height (Basic): 1.422"
- Height (Minimum): 1.36"
- Height (Maximum): 1.422"
- Category: Hex Nylon Insert Stop Lock Nuts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Grade 8
- Coating: Zinc Plated
- Coating Color: Yellow
- Origin: Origin Undefined
- Standards and Specifications: N1610 Standard NE Series
Product Videos
Custom Field
Across Flats (Basic) 1-13/16"
Across Flats (Maximum) 1.814"
Across Flats (Minimum) 1.801"
Brand Aspen Fasteners
Category Hex Nylon Insert Stop Lock Nuts
Coating Zinc Plated
Coating Color Yellow
Diameter (Dimension) 1.25"
Diameter (Nominal) 1-1/4"
Drive Style External Hex Drive
Height (Basic) 1.422"
Height (Maximum) 1.422"
Height (Minimum) 1.36"
Material Steel
Material Grade Grade 8
Order Lock Nuts
Origin Origin Undefined
POS NU076-1147-000008,NU076-1147-000004
Product Class Internally Threaded Fasteners
Standards and Specifications N1610 Standard NE Series
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Length (Nominal) 1.125"
Thread Pitch 7
